15-W Stereo Class-D Audio Power Amplifier with Speaker Protection, EUA2318 Replace TPA3110D2.
EUA2318
EUA2318.pdf
EUA2318.pdfFEATURES
? Wide Supply Voltage: 5V to 26V
? Unique Modulation Scheme Reduces EMI Emission
? Peak Power 20-W/ch into an 8-? Load From a 18-V
Supply
? 15-W/ch into an 8-? Load From a 16-V Supply
? 10-W/ch into an 8-? Load From a 13-V Supply
? 30W into a 4-? Mono Load From a 16-V Supply
? 87% Efficient Class-D Operation Eliminates
Need for Heat Sinks
? Four Selectable, Gain Settings
? Differential Inputs
? Speaker Protection Circuitry
? Auto Gain Control
? AM Avoidance
? Thermal and Short-Circuit Protection
? 28-pin TSSOP Package with Thermal Pad
? RoHS compliant and 100% lead(Pb)-free
Halogen-Free

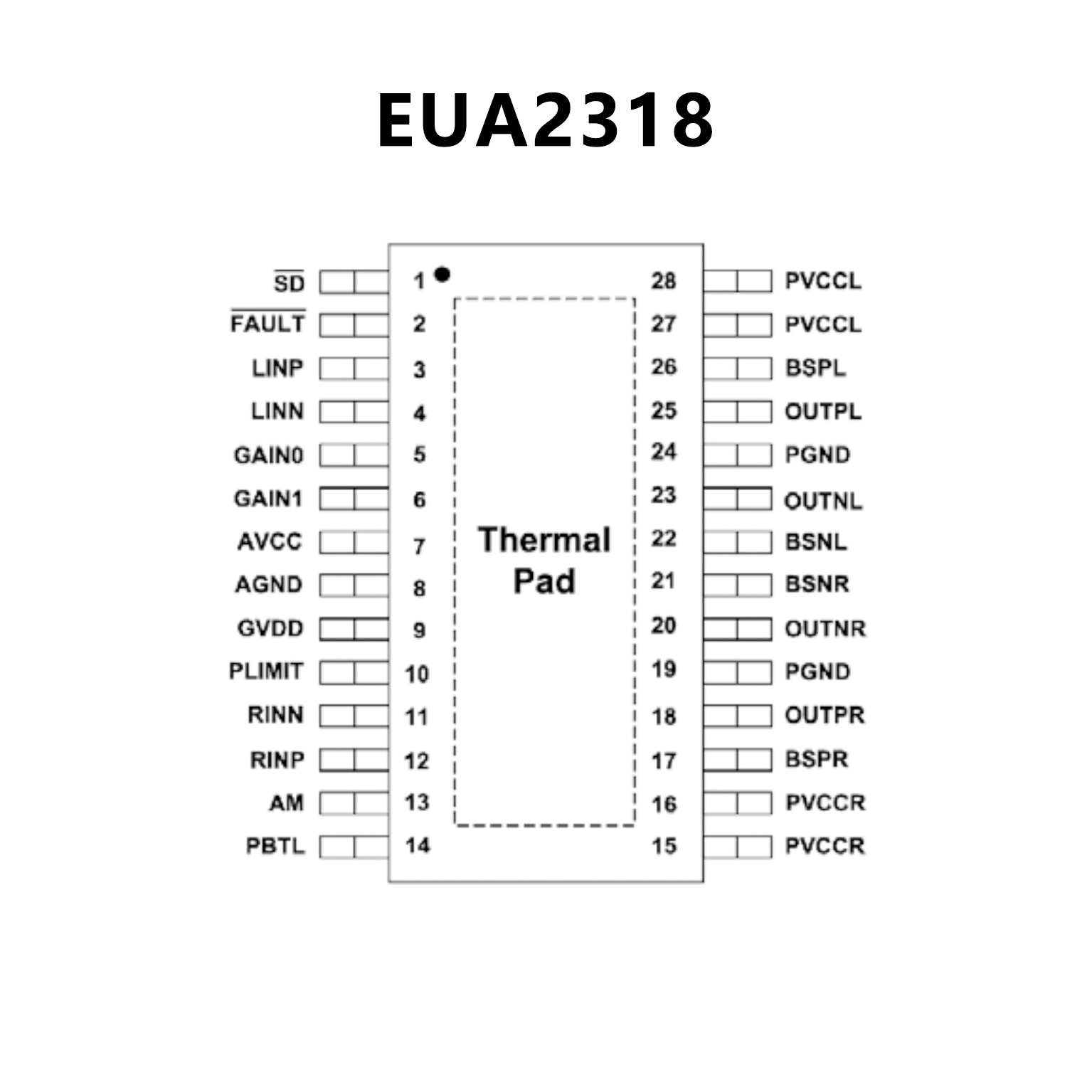

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? 15-W/ch into an 8-? Loads at 10% THD+N From
a 16-V Supply
? 10-W/ch into 8-? Loads at 10% THD+N From a
13-V Supply
? 30-W into a 4-? Mono Load at 10% THD+N From
a 16-V Supply
? 90% Efficient Class-D Operation Eliminates Need
for Heat Sinks
? Wide Supply Voltage Range Allows Operation
From 8 V to 26 V
? Filter-Free Operation
? SpeakerGuard? Speaker Protection Includes
Adjustable Power Limiter Plus DC Protection
? Flow Through Pin Out Facilitates Easy Board
Layout
? Robust Pin-to-Pin Short Circuit Protection and
Thermal Protection With Auto Recovery Option
? Excellent THD+N / Pop-Free Performance
? Four Selectable, Fixed Gain Settings
? Differential Inputs

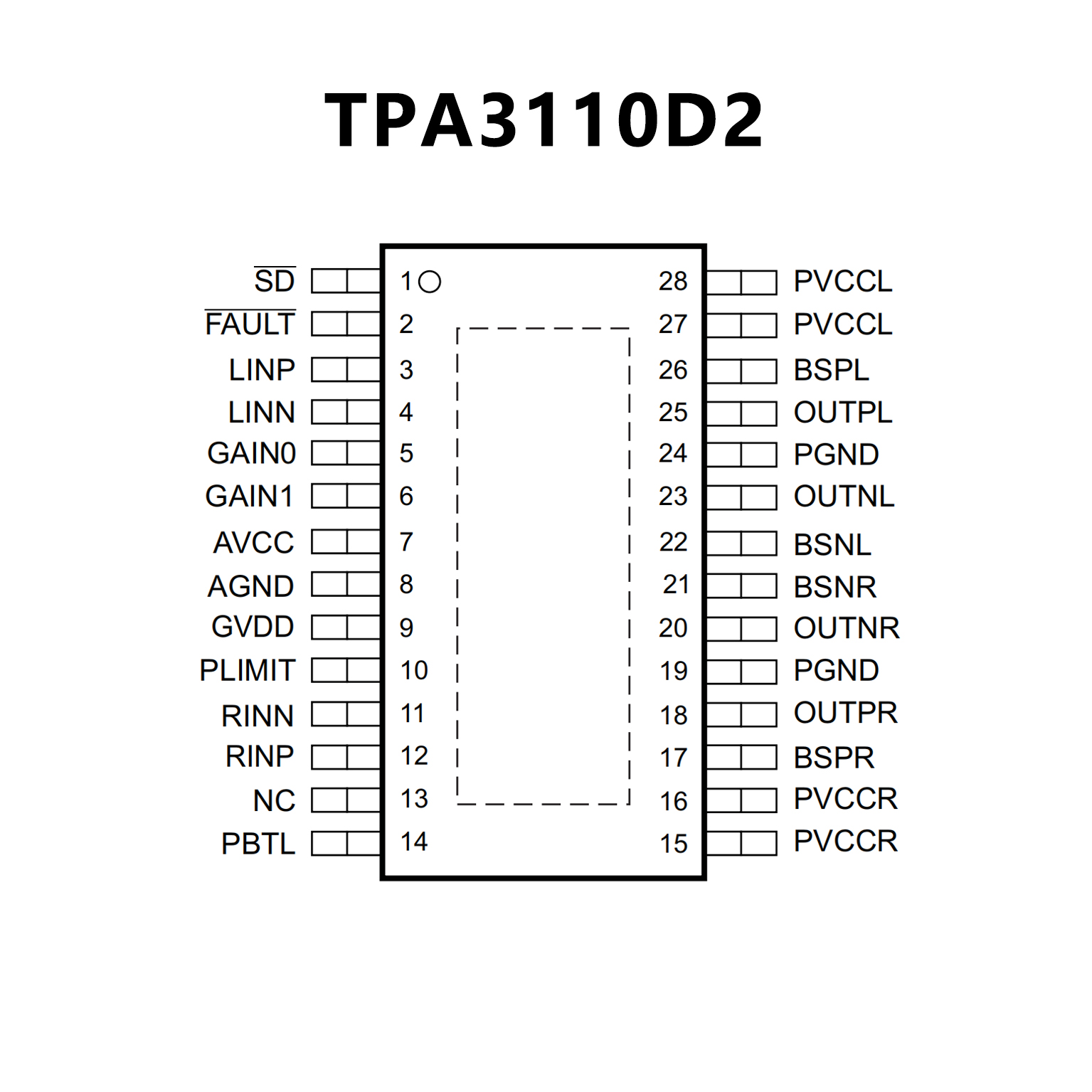

PIN CONFIGUTION
