Advanced Stereo Headphone Amplifier, EUA6211 Replace MAX9724C.
EUA6211
EUA6211.pdf
EUA6211.pdfFEATURES
? No Bulky DC-Blocking Capacitors Required
? 2.5V to 5.5V Operation
? Fixed -1.5V/V Gain
? Low 0.03% THD+N
? High PSRR (80dB at 1kHz)
? Integrated Click-and-Pop Suppression
? Low Quiescent Current (3.8mA)
? Low-Power Shutdown Mode, < 0.1μA
? SNR>105dB
? Typical Vn<10μVms 20Hz-20kHz
? THD+N<0.005% at 10k? Load
? 2Vrms Output Voltage Into 600? Load
? Short Circuit and Thermal Protection
? ±8kV HBM ESD-Protected Outputs
? Available in TDFN-12 Package
? RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free

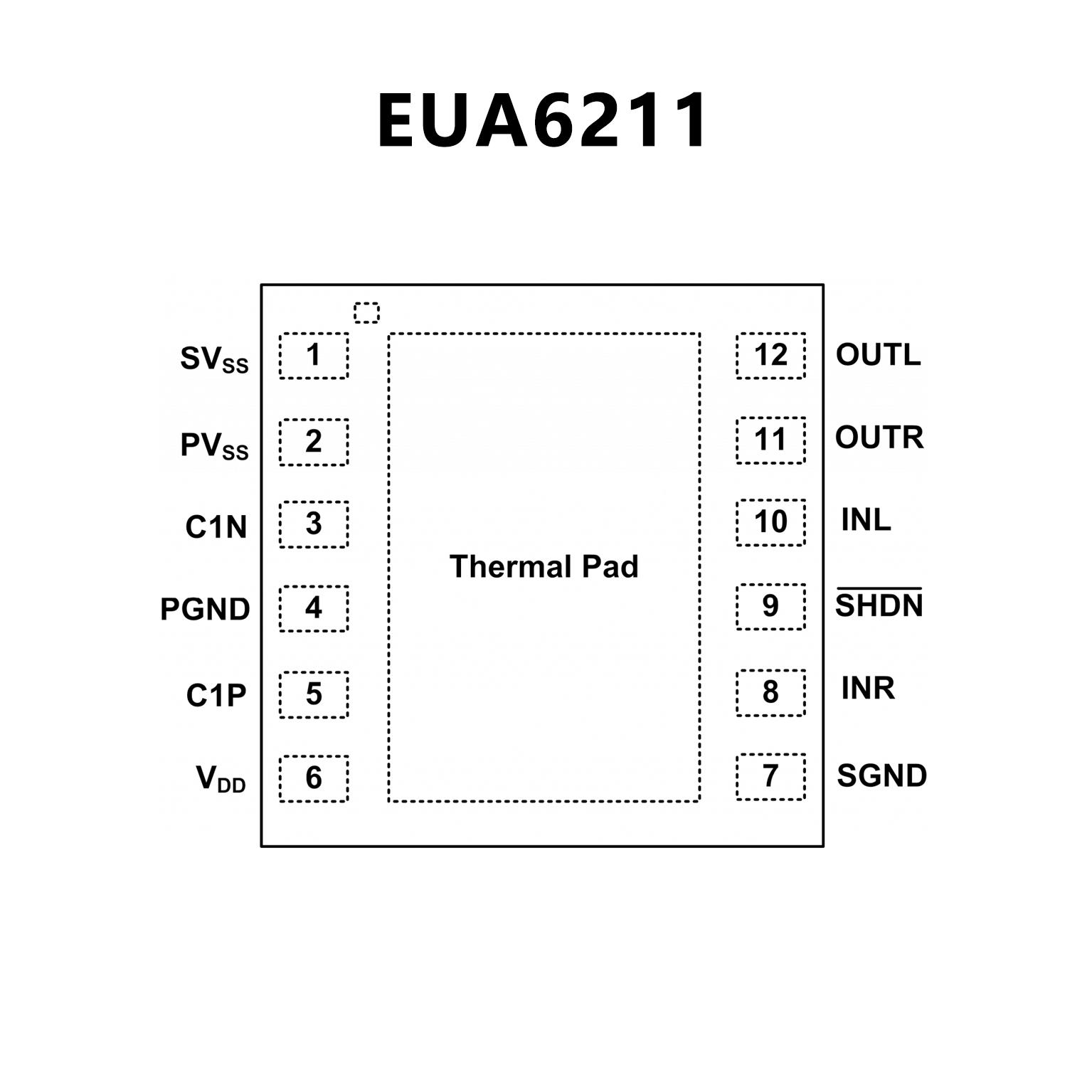

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Improved RF Noise Rejection (Up to 67dB Over
Typical Amplifiers)
? No Bulky DC-Blocking Capacitors Required
? Low-Power Shutdown Mode, < 0.1μA
? Adjustable Gain (MAX9724C) or Fixed -1.5V/V
Gain (MAX9724D)
? Low 0.02% THD+N
? High PSRR (80dB at 1kHz) Eliminates LDO
? Integrated Click-and-Pop Suppression
? 2.5V to 5.5V Single-Supply Operation
? Low Quiescent Current (3.5mA)
? Available in Space-Saving Packages
12-Bump UCSP (1.5mm x 2mm)
12-Pin Thin QFN (3mm x 3mm x 0.8mm)

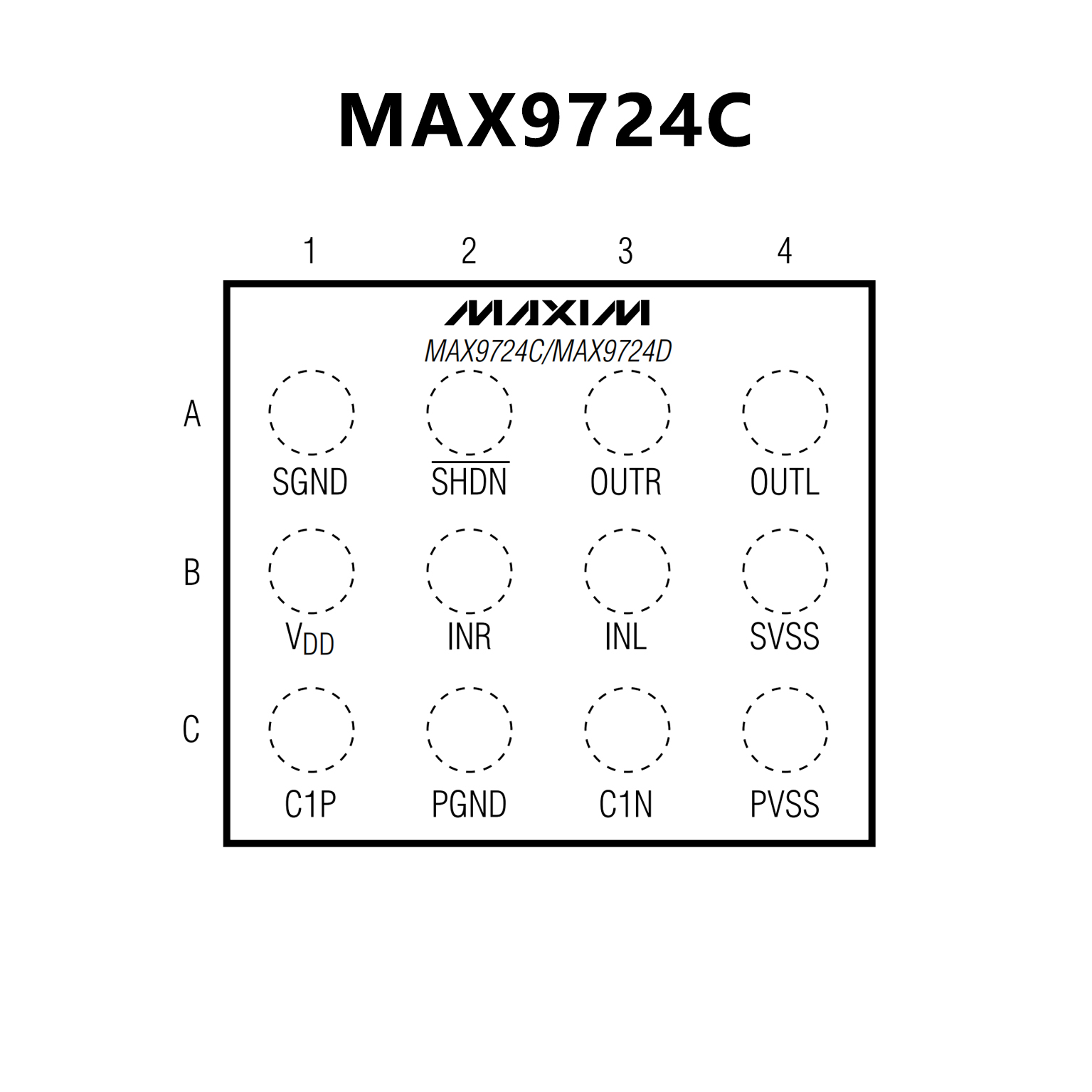

PIN CONFIGUTION
