16V Low Noise Single Coil Motor Driver, EUM6830 Replace MLX90287.
EUM6830
EUM6830.pdf
EUM6830.pdfFEATURES
? All-In-One fan driver, including high sensitivity
Hall-effect sensor
? Wide Input Range 3.5V ~ 16V
? Accepts wide input frequency range
? Built-in pull up resistor on PWM
? Intelligent soft start suppresses high peak current
during start-up
? PWM speed control with minimum speed setting
? Soft switch for low noise operation over wide speed
range
? High magnetic sensitivity:±3mT
? Protections
UVLO
LRP
Thermal Protection
Reverse Voltage Protection
? High ESD rating:±8kV
? Available in SOP-8 Package

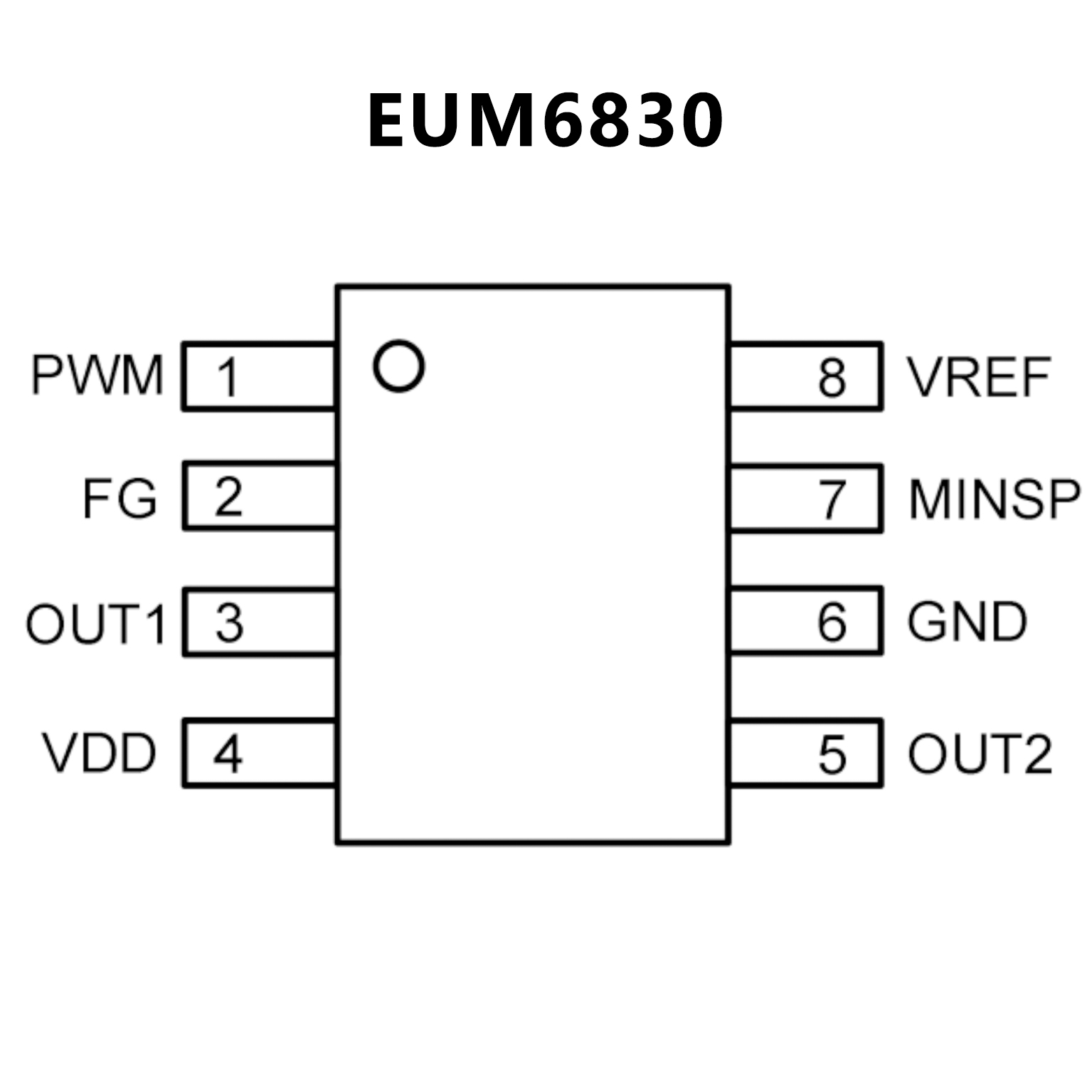

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Full integrated fan driver including hall position sensor
? High magnetic sensitivity
? High output current
? PWM speed control with minimum speed setting
? Accepts wide input frequency range, and converts to
fixed 30kHz output frequency
? Built-in pull up resistor on PWM input ensures fail safe
operation in case of broken wire
? Protections: Reverse voltage, Brown out, Thermal
Protection, LRP, high ESD rating
? Automatic Gain Control (AGC) based soft switching for
low noise operation over wide speed range
? Intelligent Soft Start suppresses high peak currents during
start up
? Qualified according to AEC-Q100.

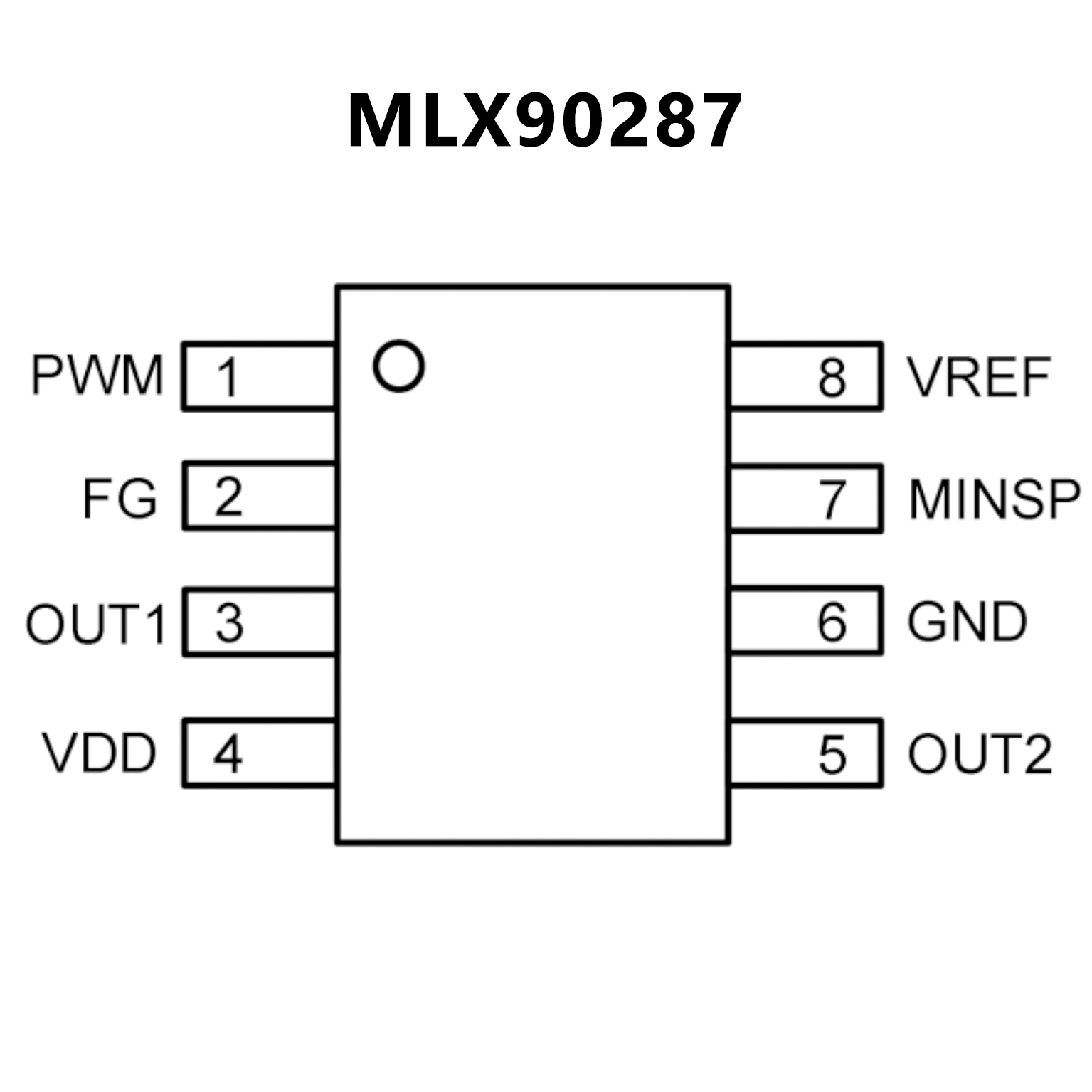

PIN CONFIGUTION
