1.5MHz, 5.5V, 1.5A Synchronous Step-Down Converter, EUP3080A Replace TLV62568.
EUP3080A
EUP3080A.pdf
EUP3080A.pdfFEATURES
? Wide Input Voltage Range: 2.5V to 5.5V
? Output Voltage as Low as 0.6V
? High Efficiency: Up to 96%
? 1.5MHz Constant Frequency Operation
? Up to 1.5A Output Current(@Vout=1.2V)
? No Schottky Diode Required
? 100% Duty Cycle in Dropout
? Low Quiescent Current: 50μA
? Slope Compensated Current Mode Control for
Excellent Line and Load Transient Response
? Short Circuit Protection
? Thermal Fault Protection
? Inrush Current Limit and Soft Start
? Build in Input Over Voltage Protection
? <1μA Shutdown Current
? Available in SOT23-5 Package

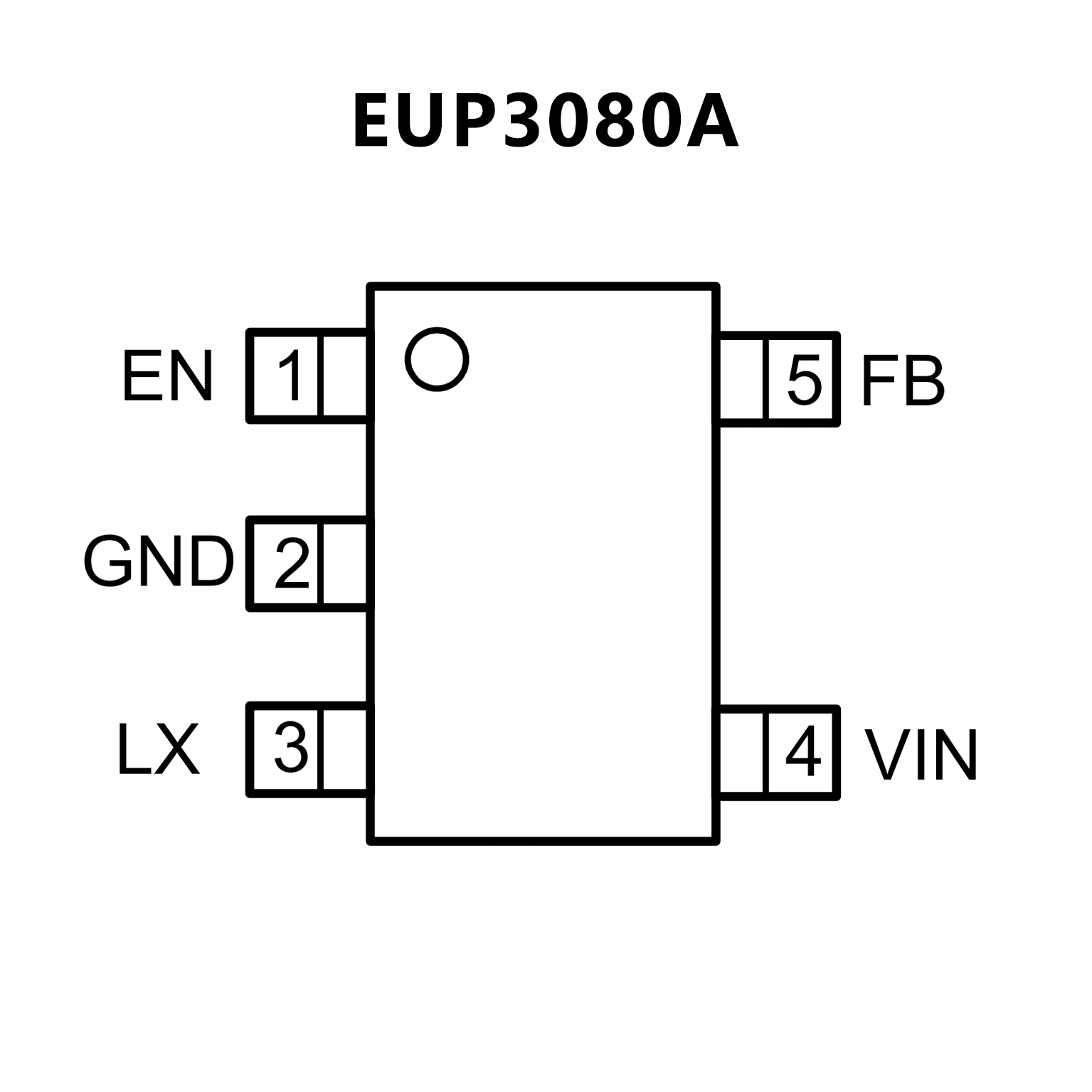

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Up to 95% Efficiency
? Low RDS(ON) Switches 150 mΩ / 100 mΩ
? 2.5-V to 5.5-V Input Voltage Range
? Adjustable Output Voltage from 0.6 V to VIN
? Power Save Mode for Light Load Efficiency
? 100% Duty Cycle for Lowest Dropout
? 35-μA Operating Quiescent Current
? 1.5-MHz Switching Frequency
? Power Good Output
? Over Current Protection
? Internal Soft Startup
? Thermal Shutdown Protection

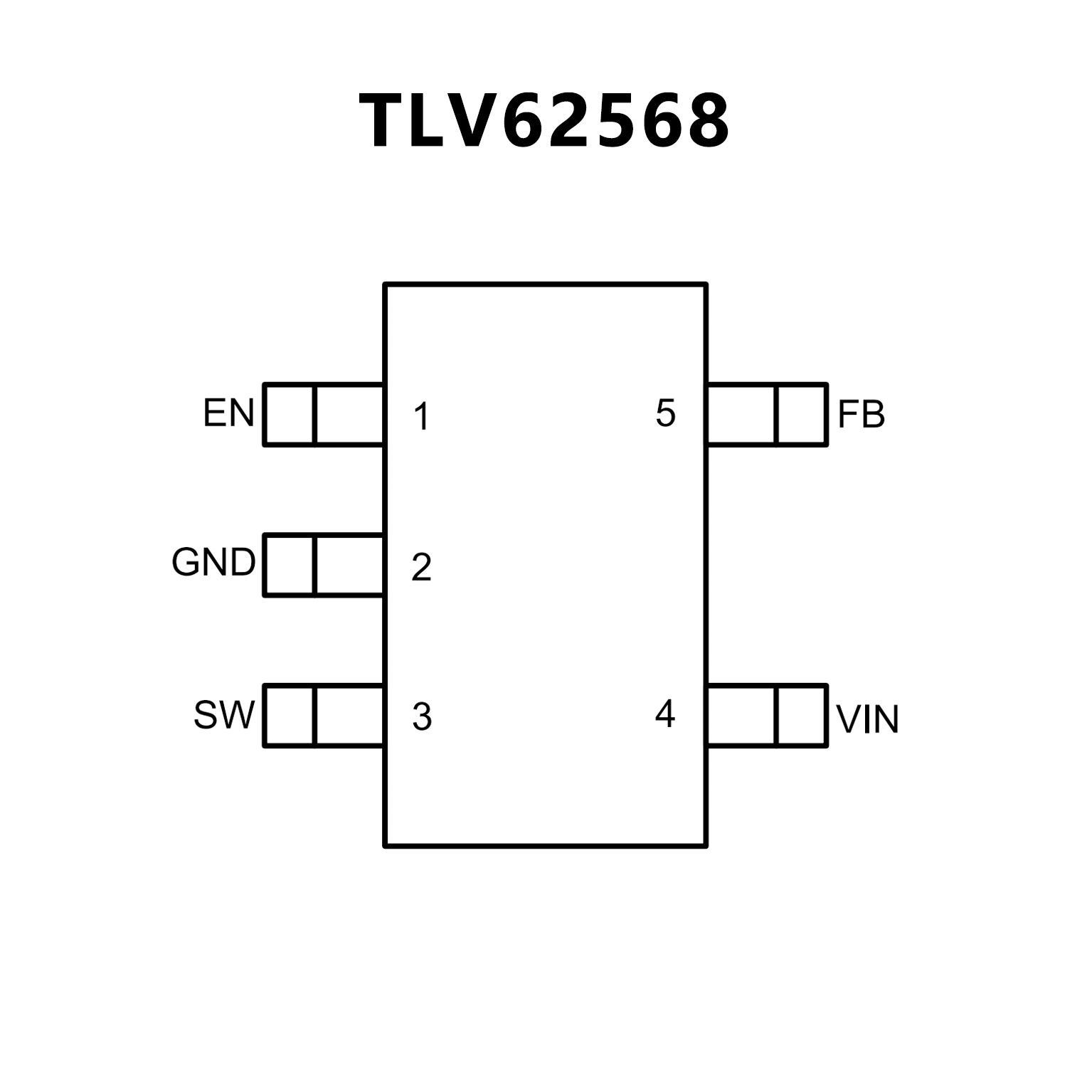

PIN CONFIGUTION
