8A, 24V, 500kHz Synchronous Step-Down Converter, EUP3098 Replace SY8388A.
EUP3098
EUP3098.pdf
EUP3098.pdfFEATURES
? 8A Output Current
? Wide Input Voltage Range: 4.5~24V
? Low HS/LS RON: 28/15m?
? Internal Soft-start
? Fixed Frequency 500kHz
? Adjustable Output Voltage Application
? High Precision Feedback Voltage : ±1%
? Input UVLO
? PFM/USM Selectable Light Load Operation Mode
? Power Good Indicator
? Output Discharge Function
? Cycle-by-cycle Valley and Peak Current
Limit Protection
? Programmable Valley Current Limit
Threshold by ILMT Pin
? Output Under Voltage Protection
? Output Over Voltage Protection
? Over Temperature Protection
? Compact Package: UQFN2.5×2.5-16
? RoHS Compliant and Halogen-Free

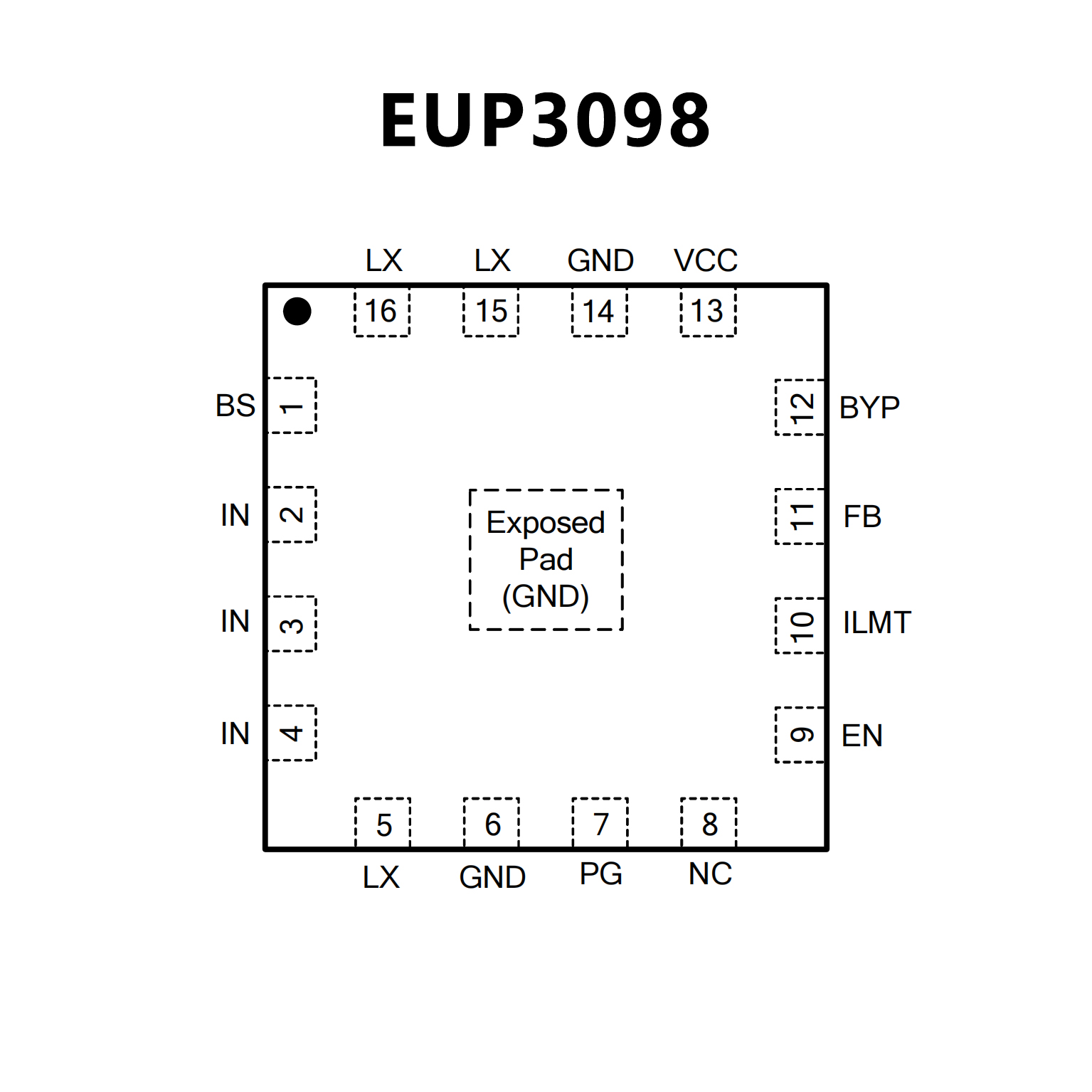

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Low RDS(ON) for Internal Switches (Top/Bottom):
20/10 m?
? Wide Input Voltage Range: 4~24V
? Integrated Bypass Switch: 1.5?
? Instant PWM Architecture to Achieve Fast
Transient Responses
? Internal Soft-Start Limits the Inrush Current
? Pseudo-Constant Frequency: 600kHz
? Adjustable Output Voltage Application
? 8A Output Current Capability
? ±1% Internal Reference Voltage
? PFM/FCCM Selectable Light Load Operation Mode
? Power Good Indicator
? Output Discharge Function
? Cycle-by-cycle Valley and Peak Current Limit
Protection
? Programmable Valley Current Limit Threshold
by ILMT Pin
? Hic-cup Mode Output Under Voltage Protection
? Auto-recovery Mode Output Over Voltage
Protection
? Auto-recovery Mode Over Temperature Protection
? Input UVLO
? RoHS Compliant and Halogen Free
? Compact Package: QFN2.5×2.5-16

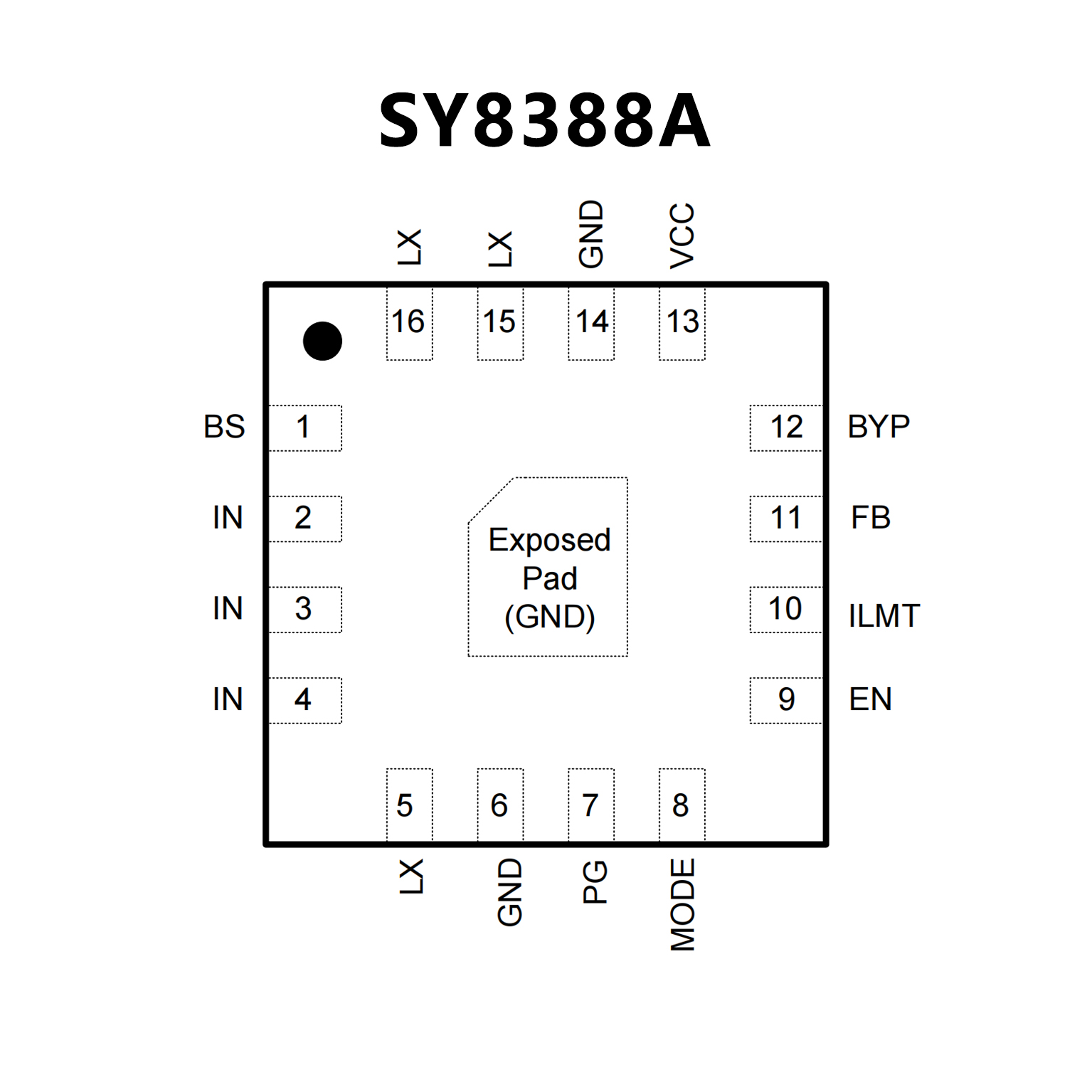

PIN CONFIGUTION
