600kHz, 18V, 3A Synchronous Step-Down Converter, EUP3133 Replace JW5060.
EUP3133
EUP3133.pdf
EUP3133.pdfFEATURES
? Wide Input Voltage Range: 4.5V to 18V
? Output Voltage Range: 0.765V to 7V
? Reference Voltage: 0.765V±1.5%
? High Efficiency: Up to 93%(@3.3V)
? 600kHz Frequency Operation
? Up to 3A Output Current
? Low RDS(ON) for internal switches:
80mΩ/40mΩ(top/bottom)
? Advanced COT Control to Achieve Fast Transient
Responses
? Integrated Internal Compensation
? Stable with Low ESR Ceramic Output Capacitors
? Over Current Protection with Hiccup Mode
? Thermal Shutdown
? Inrush Current Limit and Soft Start
? Build in Input Over Voltage Protection
? Available in SOT23-6 Package

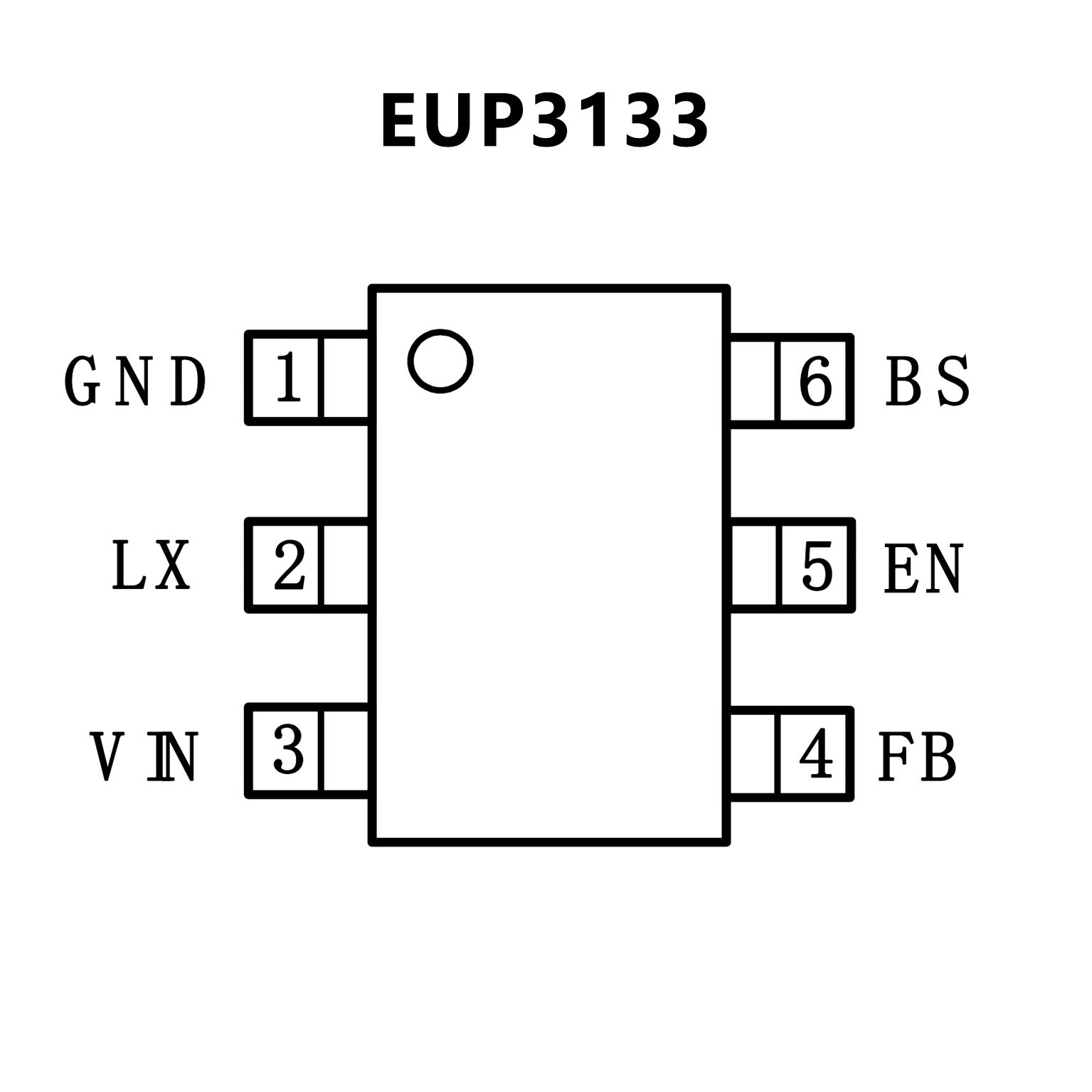

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? 4V to 24V operating input range
3A output current
? Up to 95% efficiency
? High efficiency (>85%) at light load
? 800kHz switching frequency
? Internal soft-start
? Input under voltage lockout
? Current run-away protection
? Output short protection
? Thermal protection
? Available in TSOT23-6 package
PIN CONFIGUTION
