600kHz, 18V, 3A, FPWM Synchronous Step-Down Converter, EUP3133F Replace JW5361.
EUP3133F
EUP3133F.pdf
EUP3133F.pdfFEATURES
? Wide Input Voltage Range: 4.5V to 18V
? Output Voltage Range: 0.765V to 7V
? Reference Voltage: 0.765V±1.5%
? High Efficiency: Up to 93%(@3.3V)
? Force PWM 600kHz Operation
? Up to 3A Output Current
? Low RDS(ON) for internal switches:
80mΩ/40mΩ(top/bottom)
? Advanced COT Control to Achieve Fast Transient
Responses
? Integrated Internal Compensation
? Stable with Low ESR Ceramic Output Capacitors
? Over Current Protection with Hiccup Mode
? Thermal Shutdown
? Inrush Current Limit and Soft Start
? Build in Input Over Voltage Protection
? Available in SOT23-6 Package

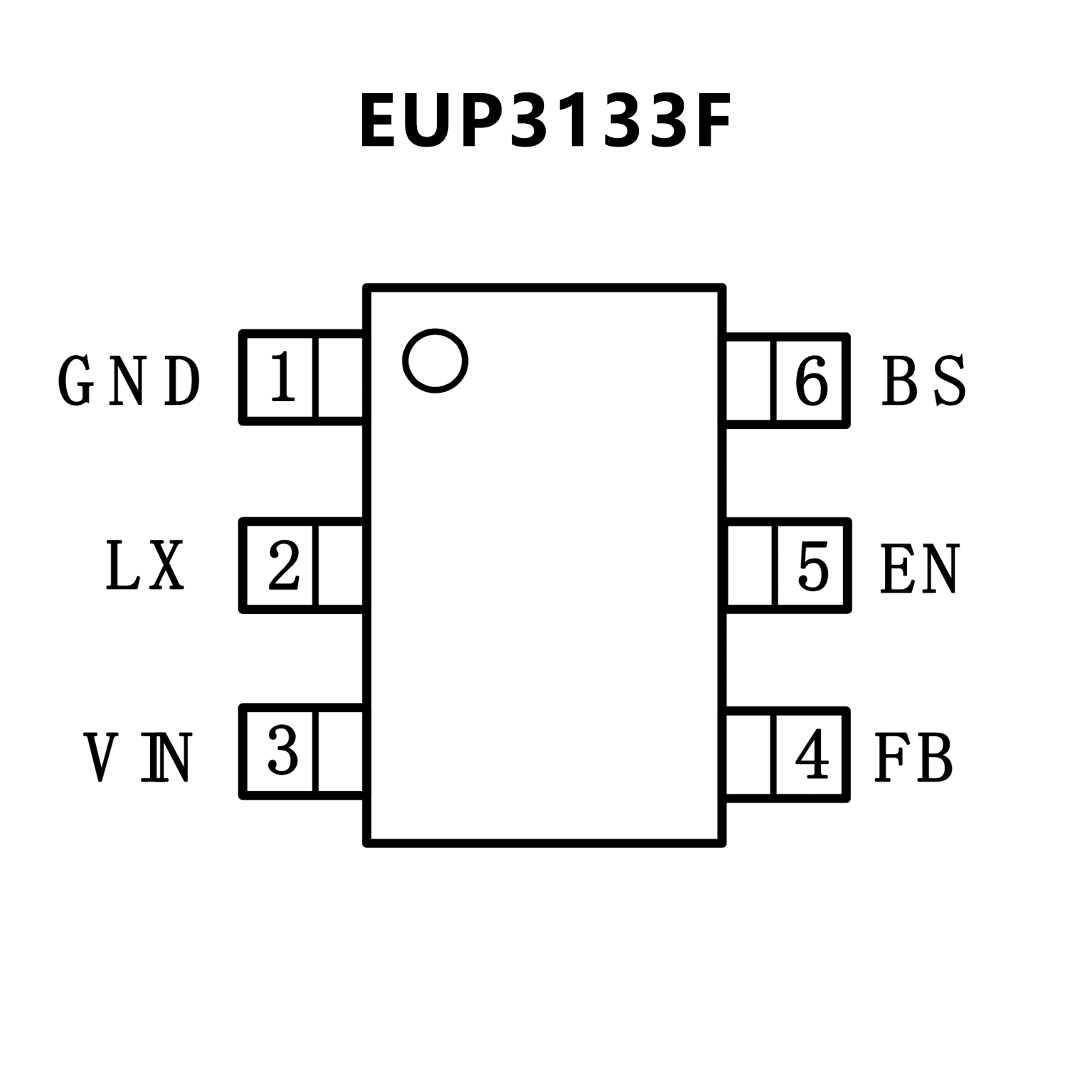

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? 4.5V to 18V operating input range 3A output current
? Up to 95% efficiency
? FCCM at light load (JW5361F / JW5361FM)
? PFM at light load (JW5361 / JW5361M)
? 600kHz switching frequency
? Internal soft-start
? Input under-voltage lockout
? Current run-away protection
? Output short protection
? Thermal protection
? Available in SOT23-6 package

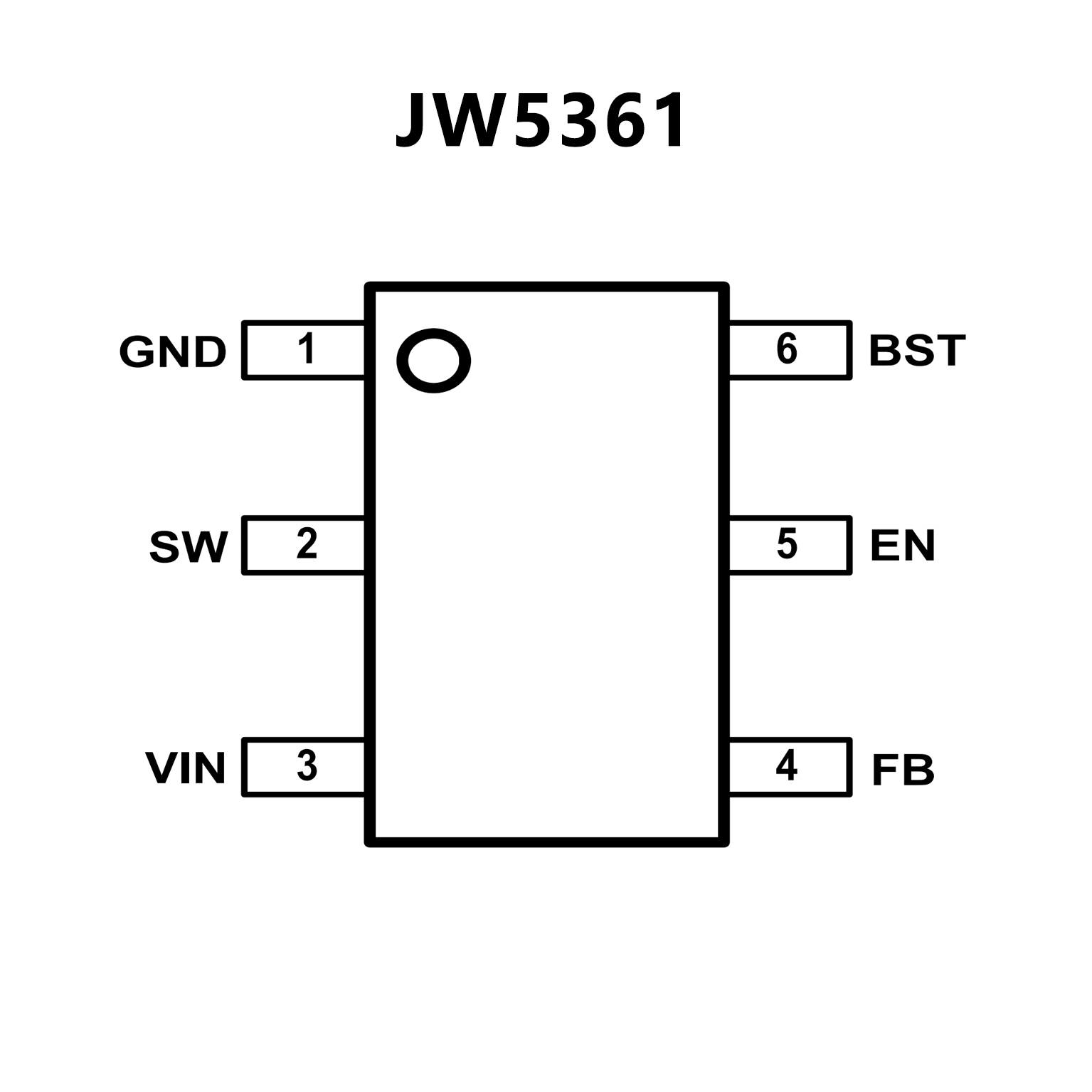

PIN CONFIGUTION
