750kHz, 18V, 2A Synchronous Step-Down Converter, EUP3152 Replace ETA8210.
EUP3152
EUP3152.pdf
EUP3152.pdfFEATURES
? Wide Input Voltage Range: 4.5V to 18V
? Output Voltage Range: 0.6V to 7V
? Reference Voltage: 0.6V±1.5%
? High Efficiency Synchronous-Mode Operation
? 750kHz Frequency Operation
? Up to 2A Output Current
? Low RDS(ON) for internal switches:
140mΩ/70mΩ(top/bottom)
? Advanced COT Control to Achieve Fast Transient
Responses
? Power Save Mode at Light Load
? Integrated Internal Compensation
? Stable with Low ESR Ceramic Output Capacitors
? Over Current Protection with Hiccup Mode
? Thermal Shutdown
? Inrush Current Limit and Soft Start
? Build in Input Over Voltage Protection
? Available in SOT23-6 Package

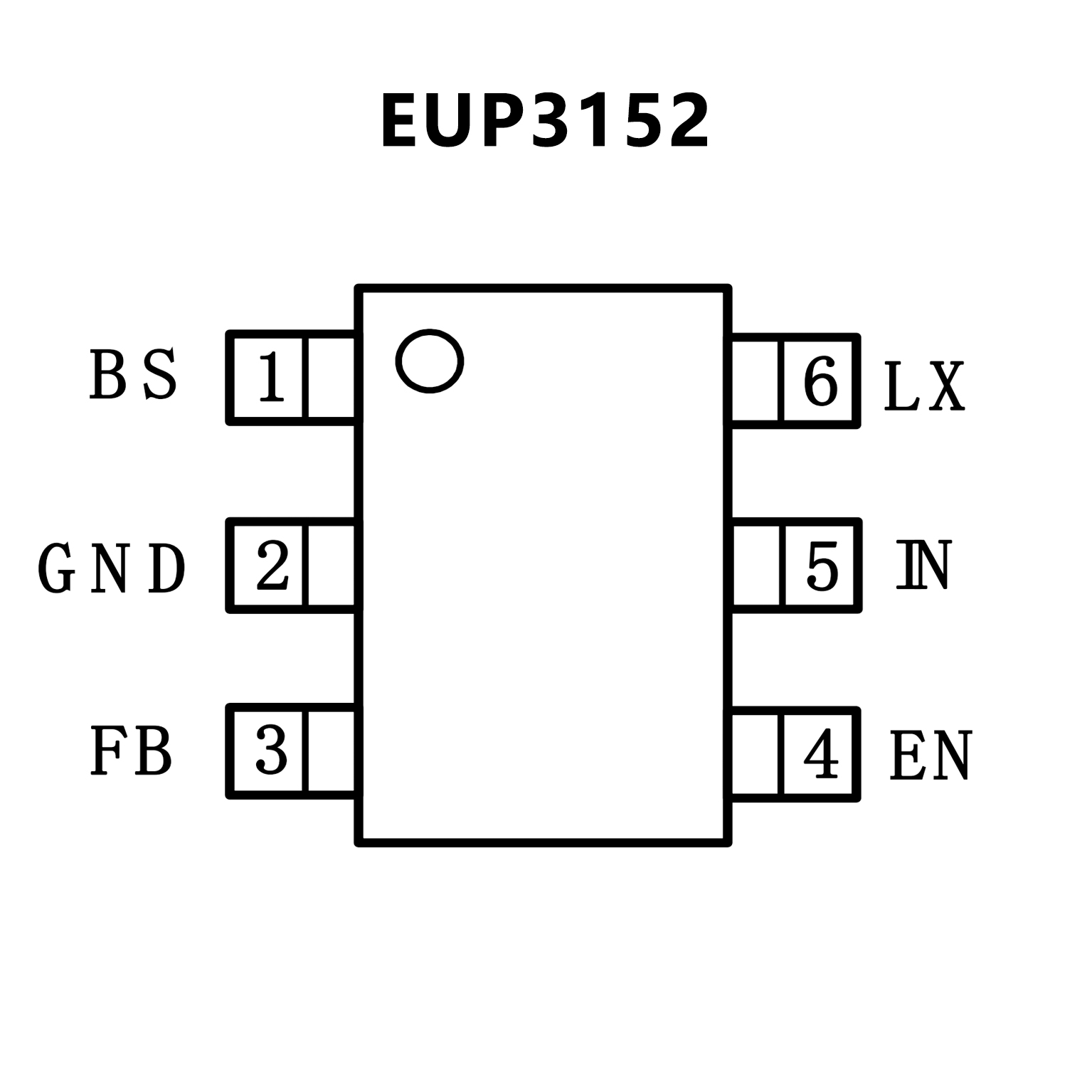

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Wide Input Voltage Range: 4V-18V
? Adaptive COT Control
? Forced PWM Mode
? Capable of Delivering 2A Output
? Ultra-fast Load Transient Response
? High Efficiency Synchronous Operation
? Low Rdson Internal power FETs
? No External Compensation Needed
? Thermal Shutdown and UVLO
? Available in SOT23-6 Package
? RoHS Compliant

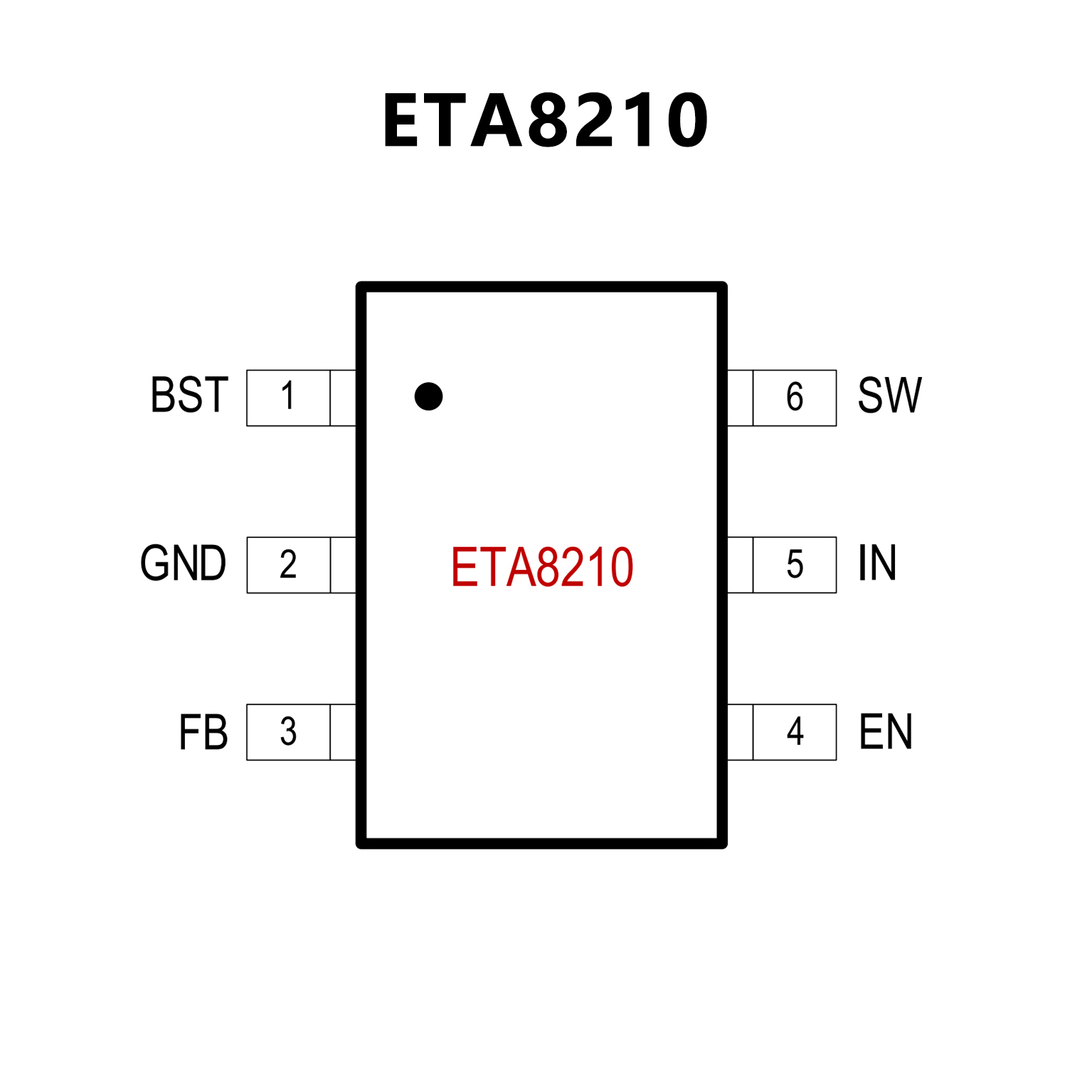

PIN CONFIGUTION
