750kHz, 18V, 2A Synchronous Step-Down Converter, EUP3162 Replace MP1470.
EUP3162
EUP3162.pdf
EUP3162.pdfFEATURES
? Wide Input Voltage Range: 4.5V to 18V
? Output Voltage Range: 0.8V to 7V
? Reference Voltage: 0.8V±1.5%
? High Efficiency Synchronous-Mode Operation
? 750kHz Frequency Operation
? Up to 2A Output Current
? Low RDS(ON) for internal switches:
140mΩ/70mΩ(top/bottom)
? Advanced COT control to achieve fast transient
responses
? Power save mode at light load
? Integrated internal compensation
? Stable with Low ESR Ceramic Output Capacitors
? Over current protection with hiccup mode
? Thermal shutdown
? Inrush current limit and soft start
? Build in input over voltage protection
? Available in SOT23-6 package

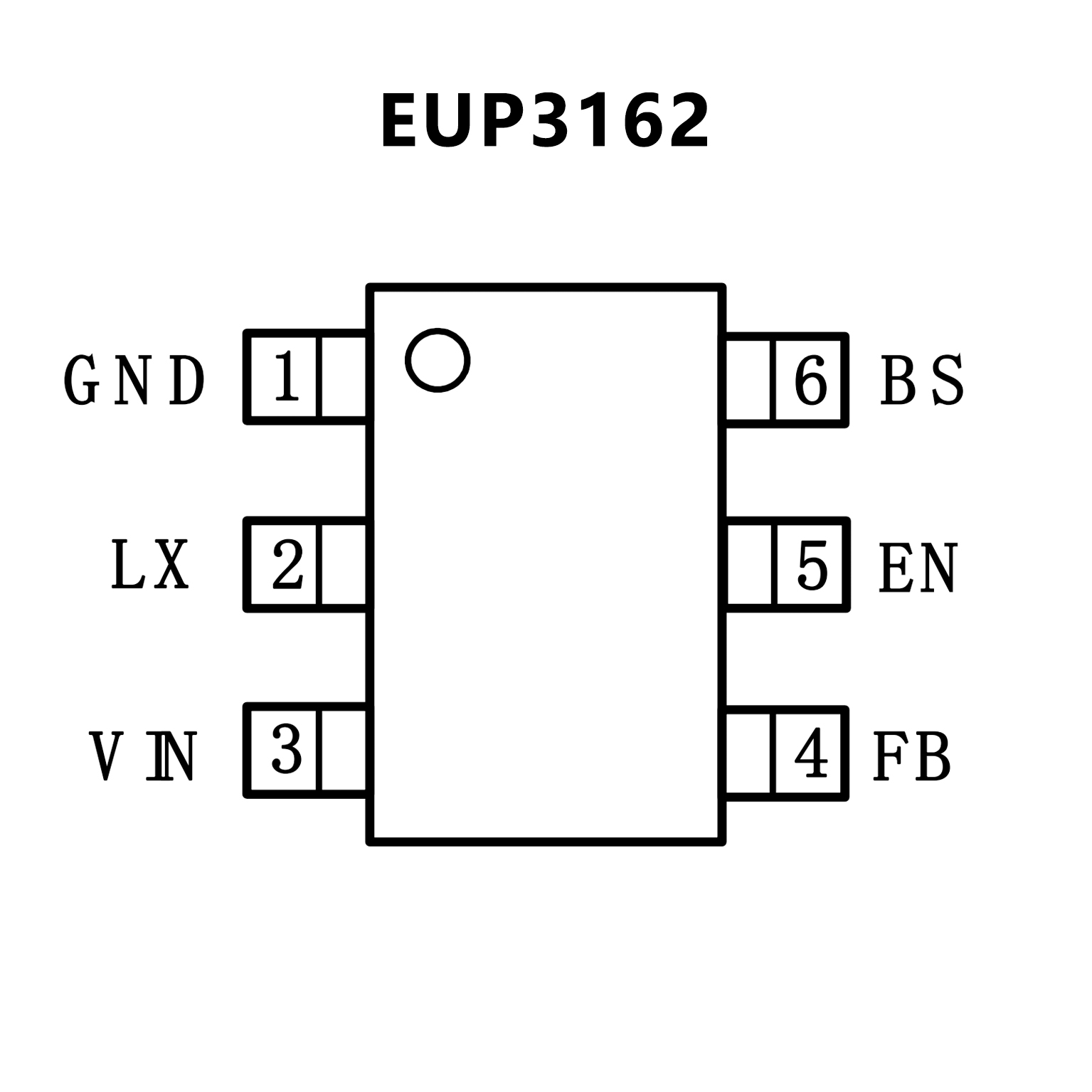

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Wide 4.7V-to-16V Operating Input Range
? 163mΩ/86mΩ Low-RDS(ON) Internal Power
MOSFETs
? Proprietary Switching-Loss–Reduction
Technique
? High-Efficiency Synchronous-Mode
Operation
? Fixed 500kHz Switching Frequency
? AAM Power-Save Mode for High Efficiency
at Light Load
? Internal Soft-Start
? Over-Current Protection and Hiccup
? Thermal Shutdown
? Output Adjustable from 0.8V
? Available in a 6-pin TSOT-23 package
? GameStations
? Digital Set-Top Boxes
? Flat-Panel Television and Monitors
? General Purposes

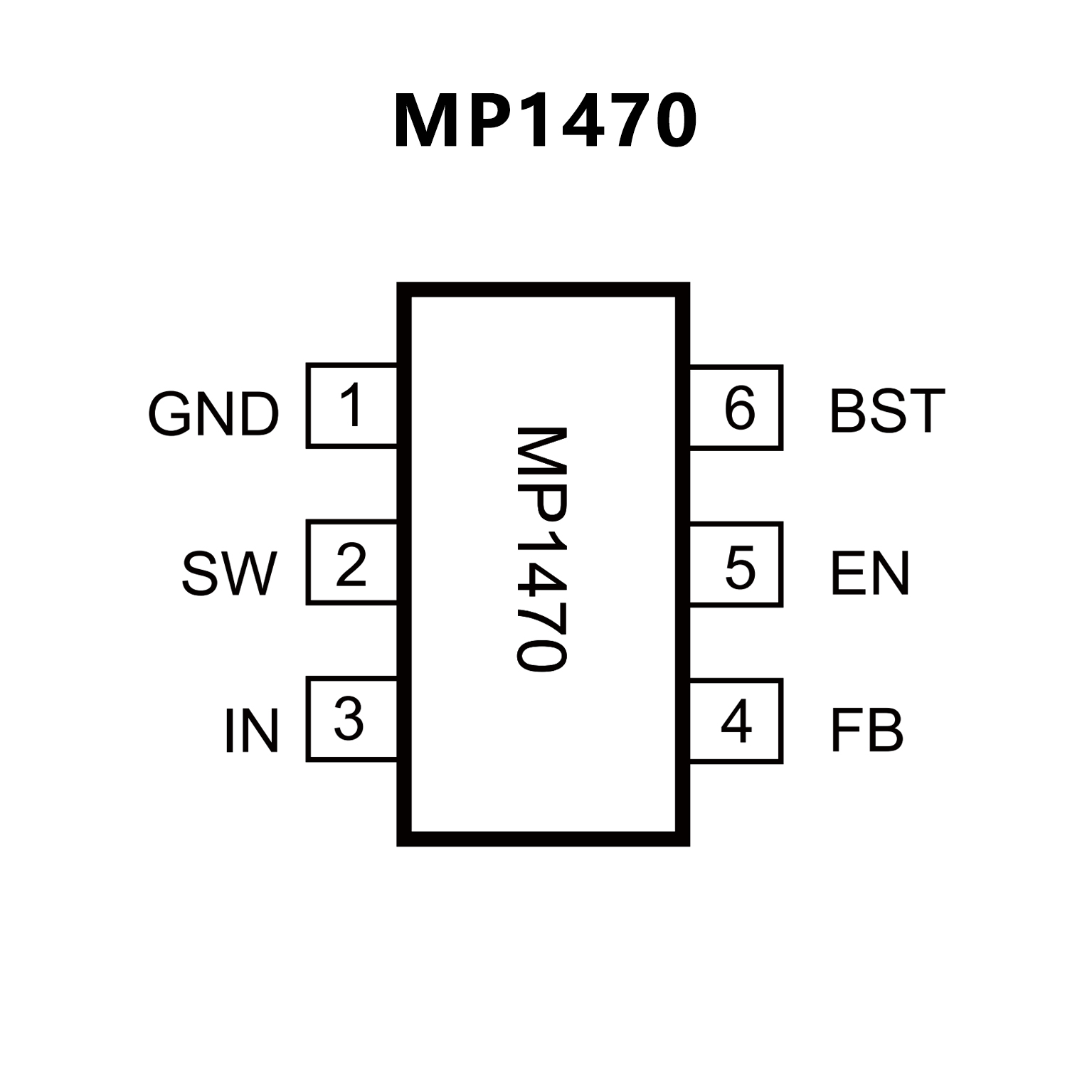

PIN CONFIGUTION
