3A, 30V, 340KHz Synchronous Step-Down Converter, EUP3284H Replace MP1484.
EUP3284H
EUP3284H.pdf
EUP3284H.pdfFEATURES
? 3A Output Current
? Automatic Pulse Skipping Mode at Light Load
? Integrated 142m?/103m? DMOS Switches
? 4.5V to 30V Input Operating Range
? Output Adjustable from 0.92V to 20V
? Up to 94% Efficiency
? 3μA Shutdown Current
? Fixed 340KHz Frequency
? Programmable Soft-Start
? Thermal Shutdown and Overcurrent Protection
? Input Supply Undervoltage Lockout
? 220ns Minimum On Time
? Available in SOP-8 (EP) Package
? RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free

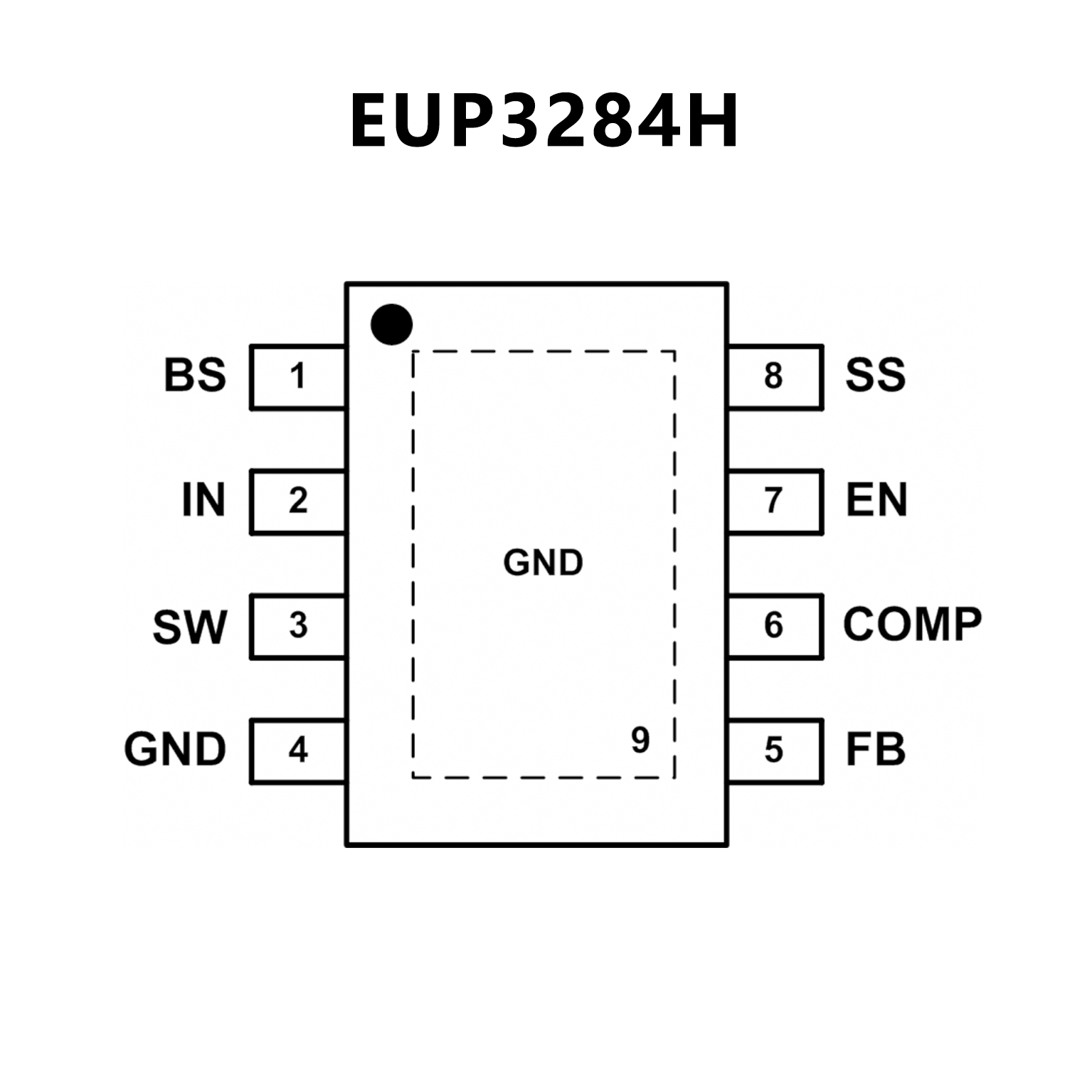

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? 3A Continuous Output Current
? Wide 4.75V to 18V Operating Input Range
? Integrated 85m? Power MOSFET Switches
? Output Adjustable from 0.925V to 15V
? Up to 95% Efficiency
? Soft-Start
? Stable with Low ESR Ceramic Output Capacitors
? Fixed 340KHz Frequency
? Cycle-by-Cycle Over Current Protection
? Input Under Voltage Lockout
? Thermally Enhanced 8-Pin SOIC Package

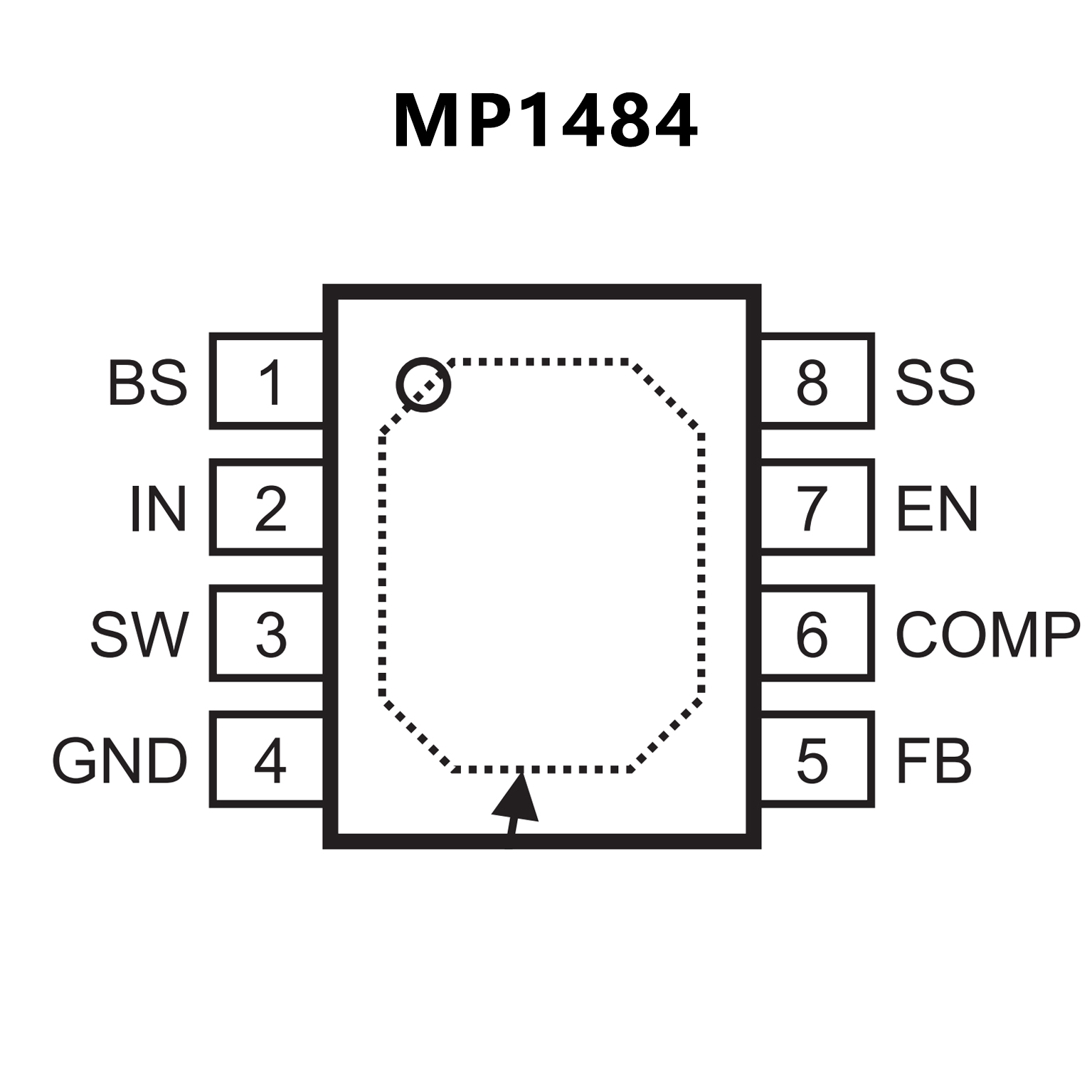

PIN CONFIGUTION
