80mΩ USB Power-Distribution Switch with Programmable Current Limit, EUP3551 Replace ETA6020.
EUP3551
EUP3551.pdf
EUP3551.pdfFEATURES
? 80mΩ(typ.) Power MOSFET
? Adjustable current limit: 125mA to 1.5A
? Operating Range : 2.7V to 5.5V
? Under Voltage Lockout
? 100μA Quiescent Current
? 1μA Maximum Shutdown Current
? No Reverse Current when Power Off
? Fault Blanking Open-Drain limit-Current Flag
Output OCB
? Enable Active-High or Active-Low
? Available in SOT23-6 Packages
? RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free

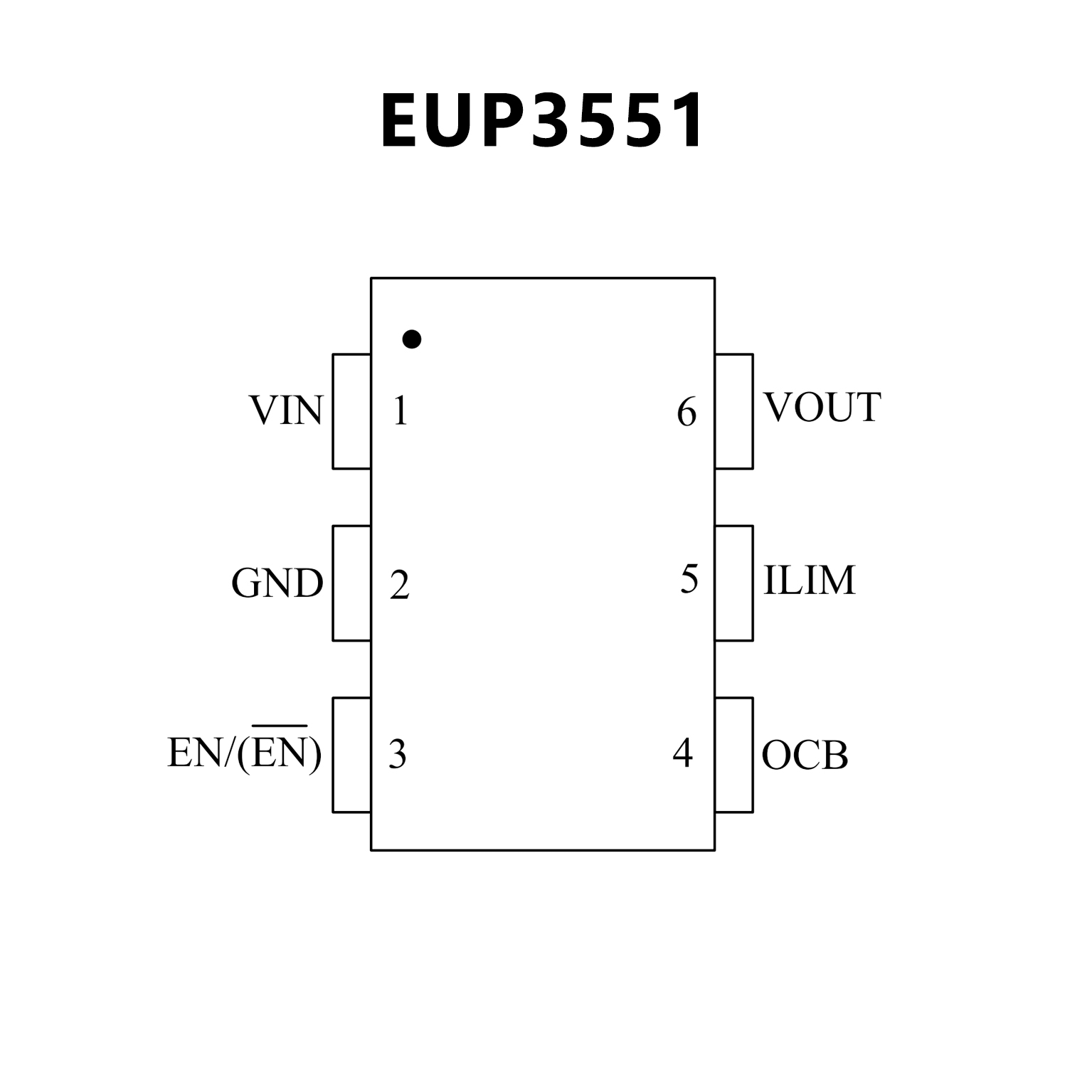

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Up to 1.5A Max Load current
? Accurate Current-limit threshold: +/-5%
? Programmable Current-limit : 75mA to 1.7A
? Fast Over-Current Response
? Fault Flag Output: n FAULT Pin
? Reversed Current blocking
? Thermal Shutdown, UVLO protection
? Tiny DFN2x2-6L Package

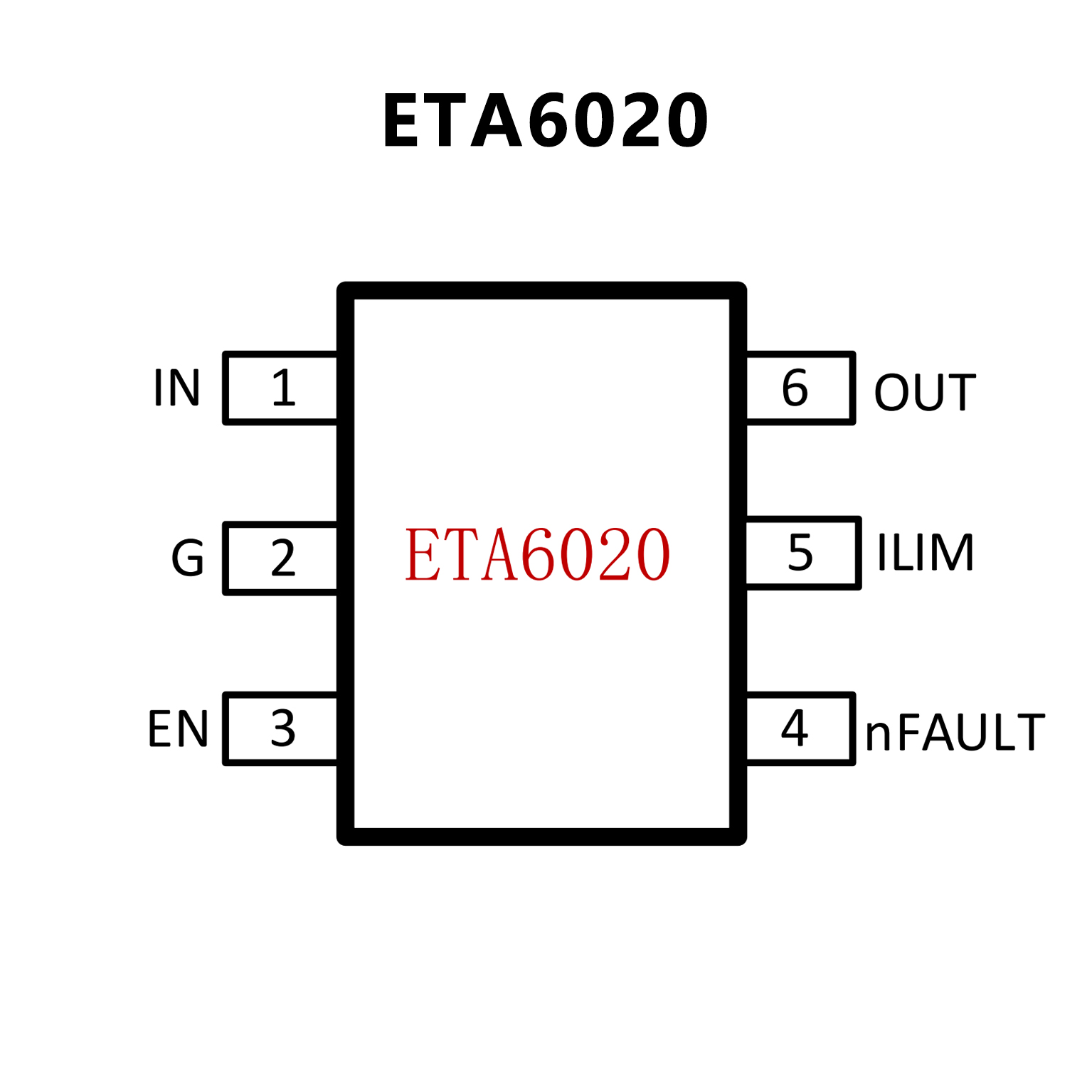

PIN CONFIGUTION
