80mΩ USB Power-Distribution Switch with Programmable Current Limit, EUP3551 Replace FP6861E.
EUP3551
EUP3551.pdf
EUP3551.pdfFEATURES
? 80mΩ(typ.) Power MOSFET
? Adjustable current limit: 125mA to 1.5A
? Operating Range : 2.7V to 5.5V
? Under Voltage Lockout
? 100μA Quiescent Current
? 1μA Maximum Shutdown Current
? No Reverse Current when Power Off
? Fault Blanking Open-Drain limit-Current Flag
Output OCB
? Enable Active-High or Active-Low
? Available in SOT23-6 Packages
? RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free

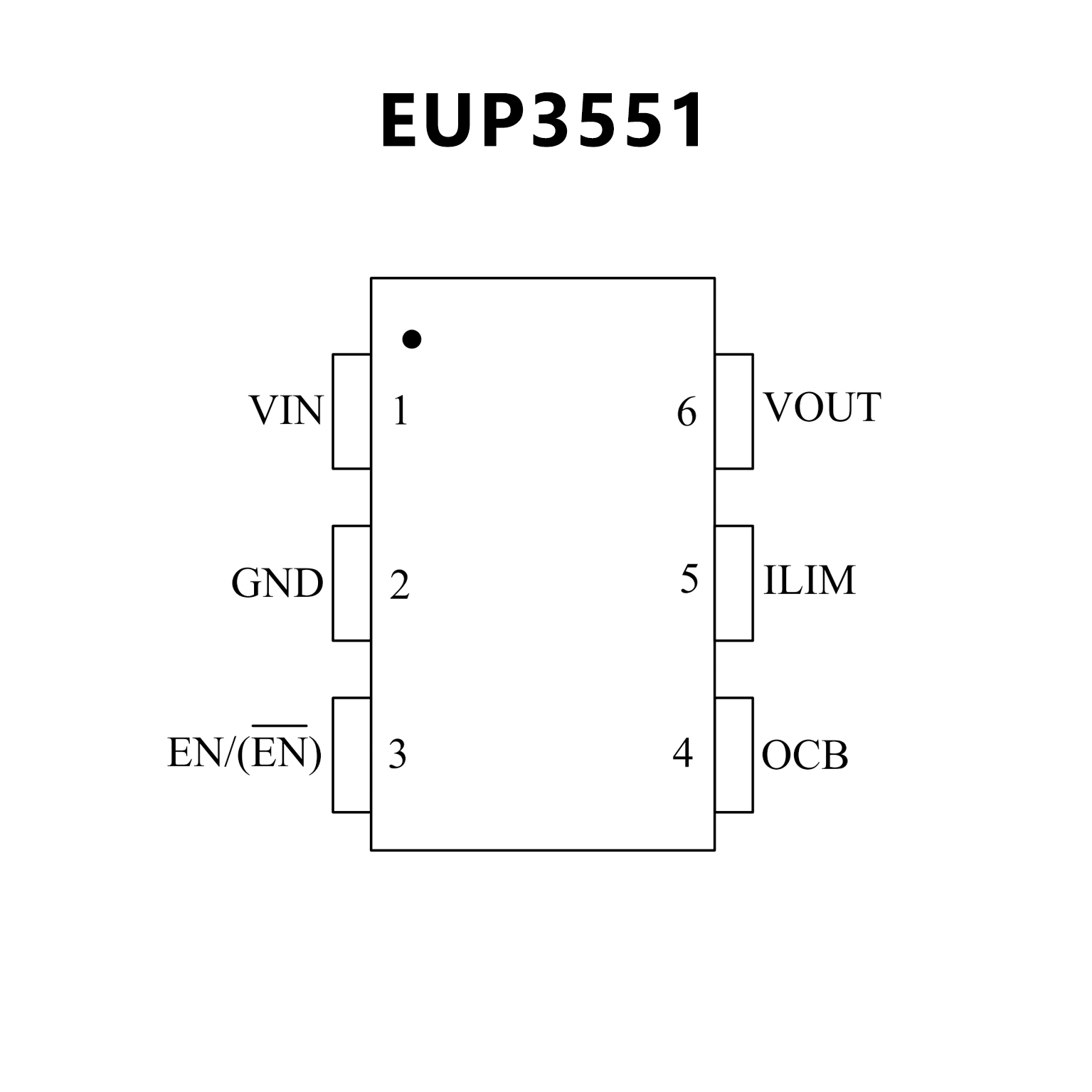

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Compliant to USB Specifications
? Adjustable Current Limit: 0.125~3.76A
? Built-in Low RDS(ON) N-Channel MOSFET
? Output can be Forced Higher than Input
? Low Supply Current:
80μA Typical at Switch On State (RILIM=20kΩ)
0.1μA Typical at Switch Off State
? Wide Input Voltage Ranges: 2.7V to 6V
? Open-Drain Fault Flag Output
? Hot Plug-In Application (Soft-Start)
? 2.2V Typical Under-Voltage Lockout (UVLO)
? Thermal Shutdown Protection
? Reverse Current Flow Blocking (No Body Diode)
? Reverse Voltage Protection
? Logic Level Enable Pin
? SOT-23-6 and TDFN-6 (2mm×2mm) Packages
? RoHS Compliant
? UL NO.E322418 (Approved model: FP6861 series)
? CB Test Certified, Ref. Certif. No. DK-104880-M1-UL

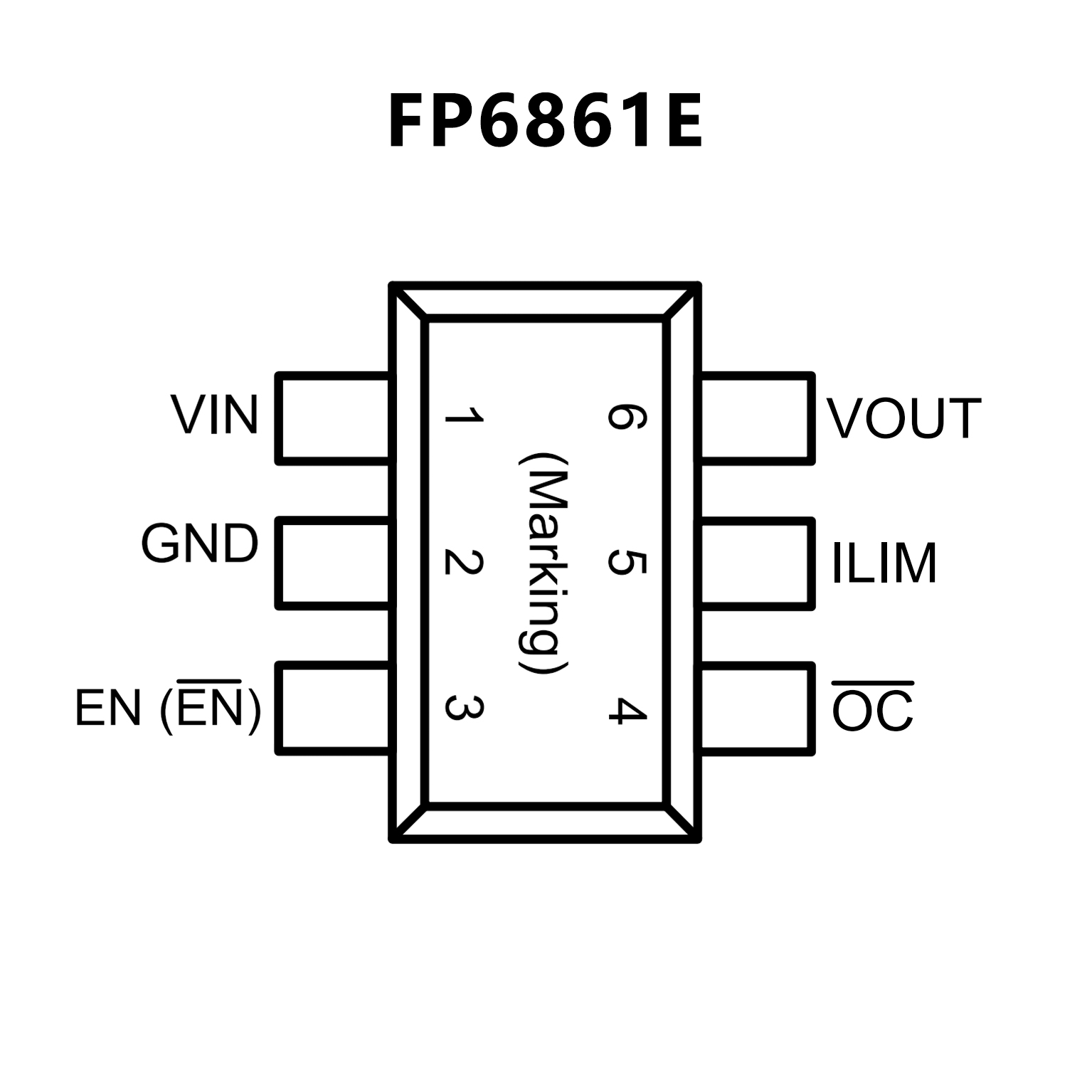

PIN CONFIGUTION
