80mΩ USB Power-Distribution Switch with Programmable Current Limit, EUP3551 Replace MP62550.
EUP3551
EUP3551.pdf
EUP3551.pdfFEATURES
? 80mΩ(typ.) Power MOSFET
? Adjustable current limit: 125mA to 1.5A
? Operating Range : 2.7V to 5.5V
? Under Voltage Lockout
? 100μA Quiescent Current
? 1μA Maximum Shutdown Current
? No Reverse Current when Power Off
? Fault Blanking Open-Drain limit-Current Flag
Output OCB
? Enable Active-High or Active-Low
? Available in SOT23-6 Packages
? RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free

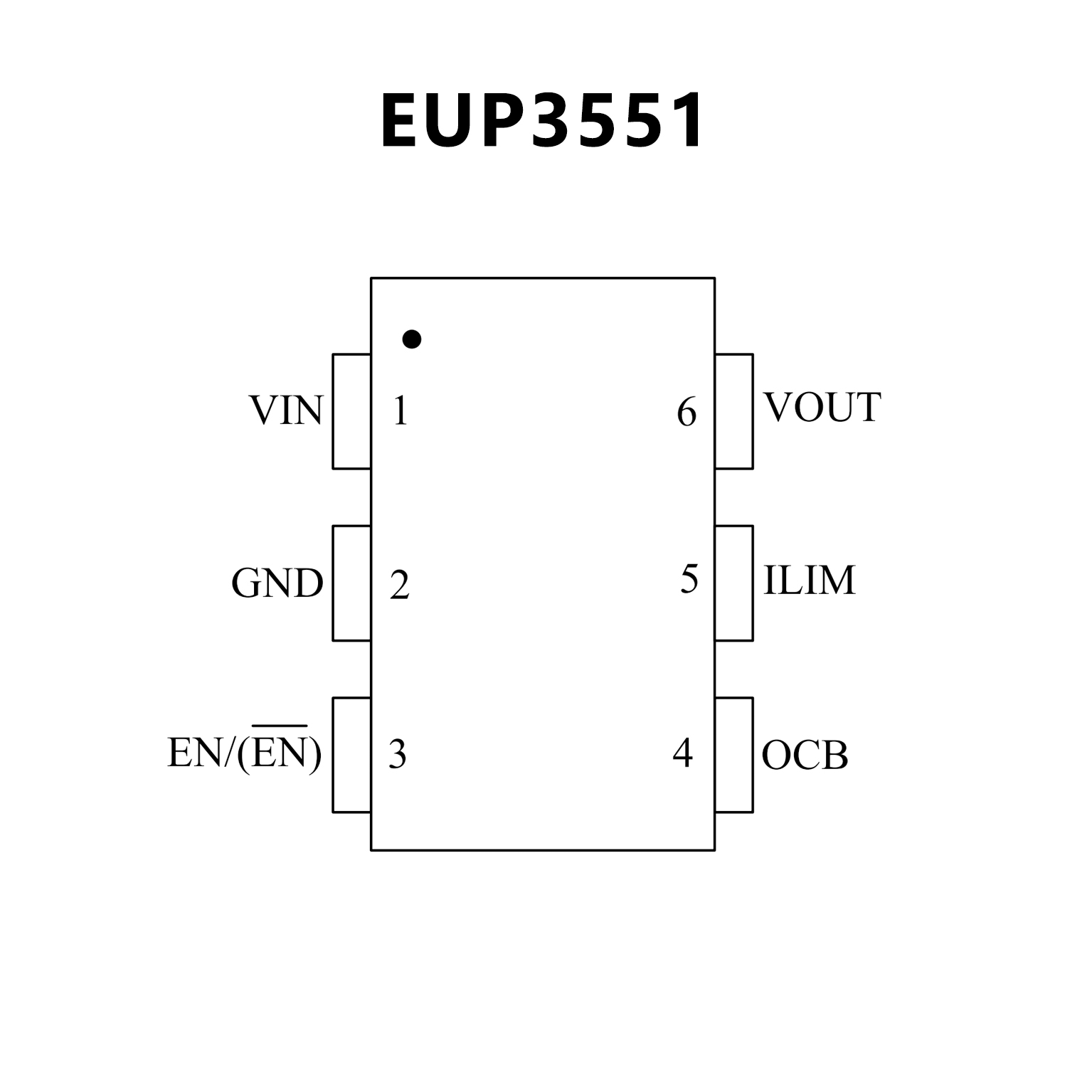

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Up to 1.5A Continuous Output Current
? ±10% Current-Limit Accuracy
? Adjustable Current-Limit, 60mA -1700mA (typ)
? Fast Over-current Response 2μs (typ)
? 2.5V to 5.5V Supply Range
? 88m? MOSFET (TQFN Package)
? 1.5μA Maximum Standby Supply Current
? Reverse Input-Output Voltage Protection
? Built-in Soft-Start
? Thermal-Shutdown Protection
? Automatic-on after Fault Removed
? Under-Voltage Lockout
? Deglitched Fault Report
? FLAG won't Change State at Input UVLO Transition
? Bidirectional Fault Deglitch Time
Active Low & Active High Options

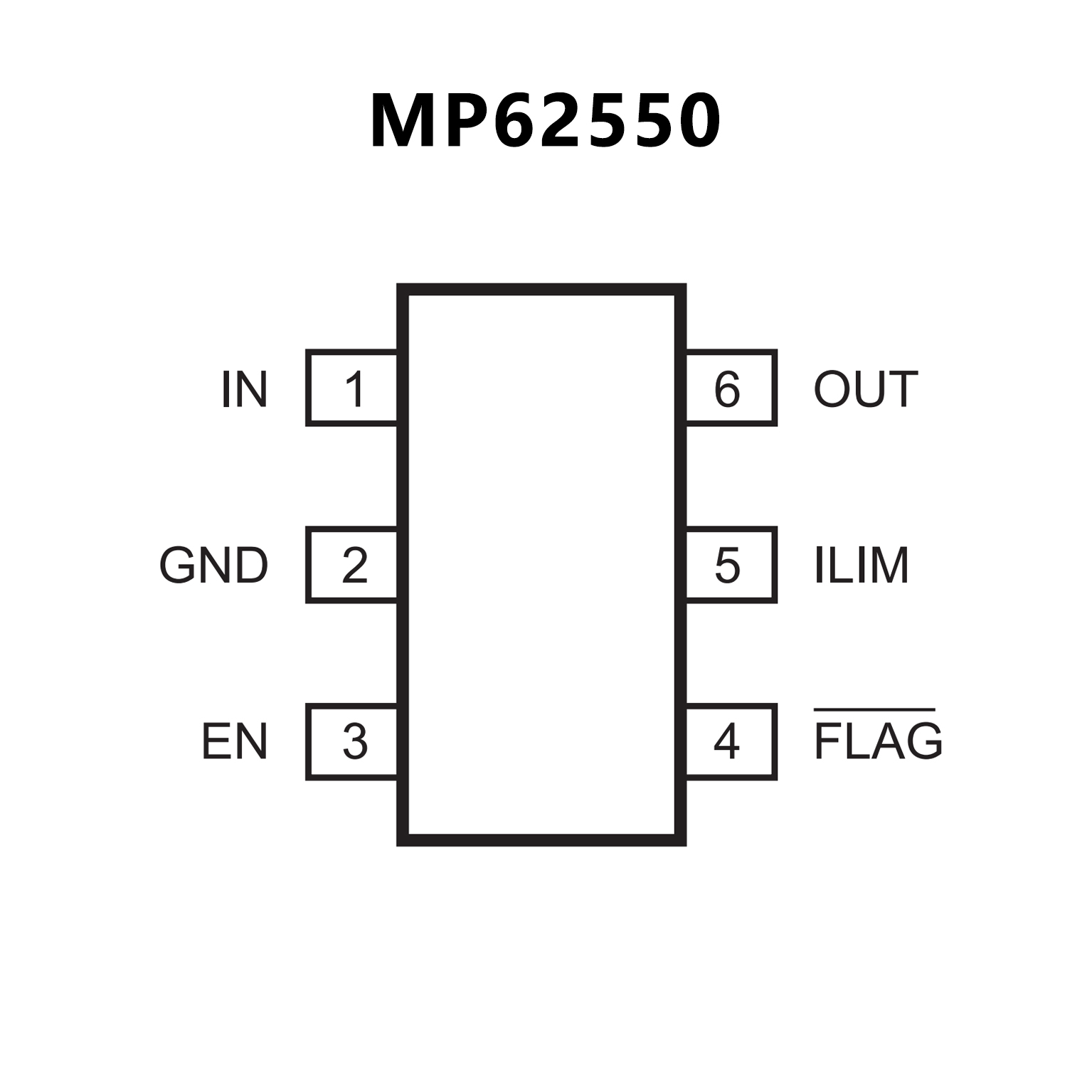

PIN CONFIGUTION
