1.5μ A Low IQ 300mA Low Noise LDO Regulator, EUP7138 Replace ID9349.
EUP7138
EUP7138.pdf
EUP7138.pdfFEATURES
? 1.5μA Quiescent Current Typically
? 70dB PSRR at 1kHz
? Up to 300mA Output Current
? Low Shutdown Current: <0.1μA
? Output Voltage Accuracy: ±2%
? Output Current Limit Protection
? Fixed Output Voltage 1.2V, 1.5V, 1.8V, 2.5V, 2.8V,
3.0V, 3.3V.
? Stable with Ceramic Output Capacitors
? Thermal Shutdown
? Output Auto-Discharge when EN Shutdown
? Available in DFN1x1-4L and SOT23-5 Package

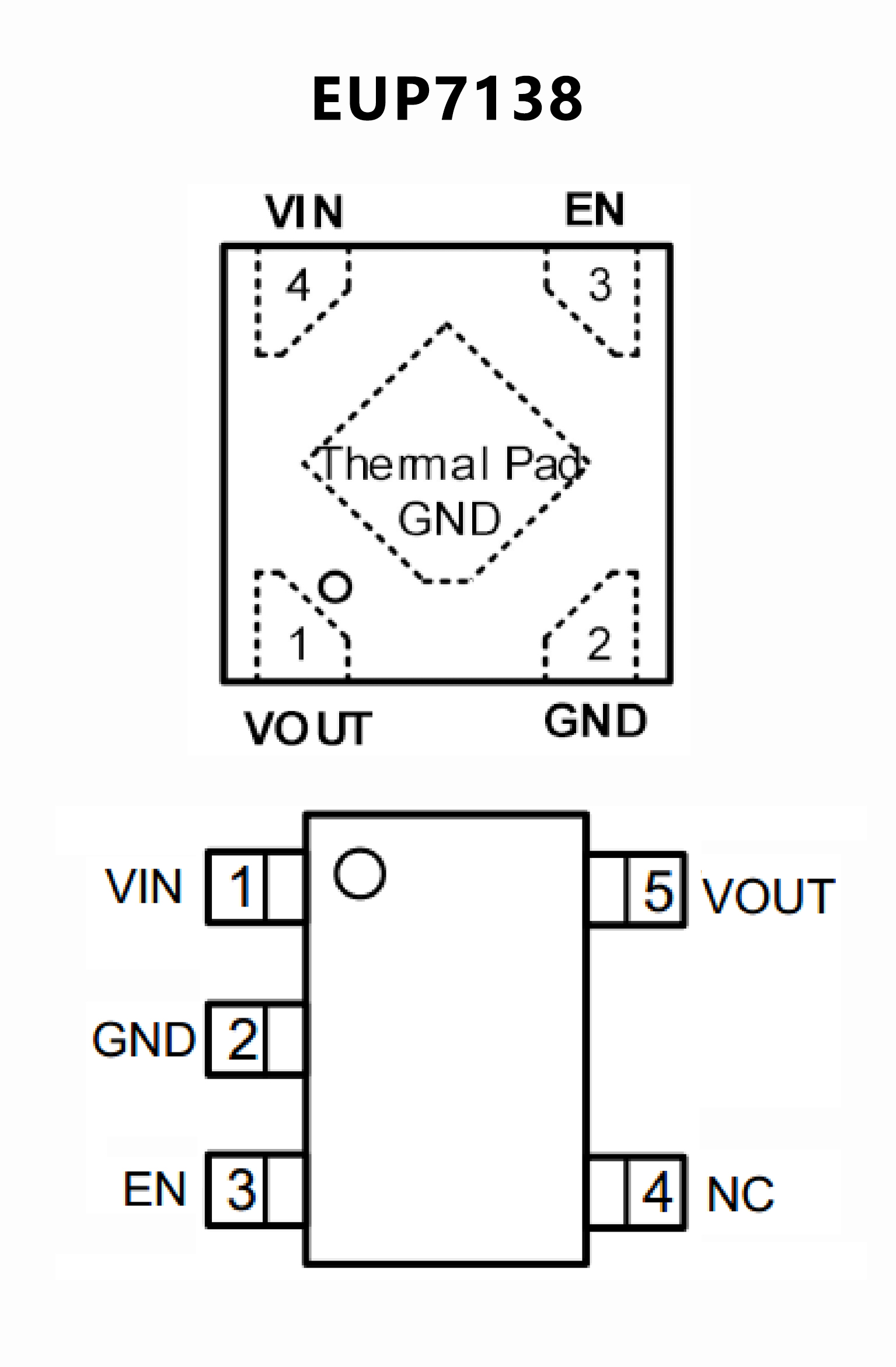

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Ultra-Low-Noise Application
? Wide 2V to 6V Operating Range
? Quick Start-up
? Current Limiting Protection
? Thermal Shutdown Protection
? Low Dropout : 220mV @ 150mA, 3.3V
? High Ripple Rejection 65dB@10kHz
? Standby Current Less 0.1? A
? Low Supply Current: 25? A

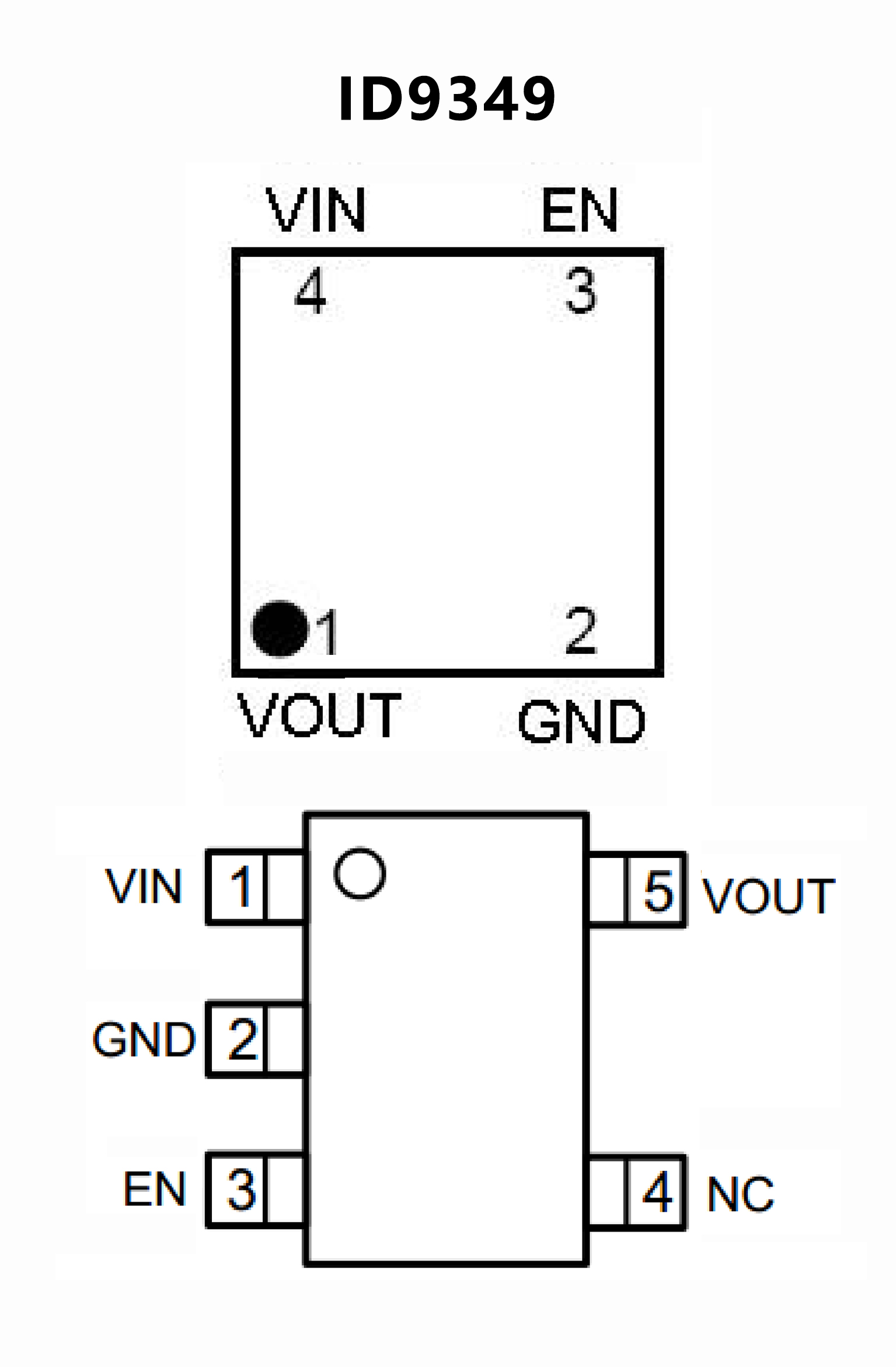

PIN CONFIGUTION
