EUP7998.pdf? VLDOIN Input Voltage Range: 1.1V to 3.5V
? VIN Input Voltage Range: 2.375V to 5.5V
? Typically 3×10μF MLCCs stable for DDR
? Fast Load-Transient Response
? ±10mA Buffered Reference (REFOUT)
? Meet DDR, DDR2 JEDEC Specifications.
Supports DDR3 and Low-Power DDR3/DDR4
VTT Applications
? Power-Good Window Comparator
? With Soft Start, UVLO and OCP
? Thermal Shutdown

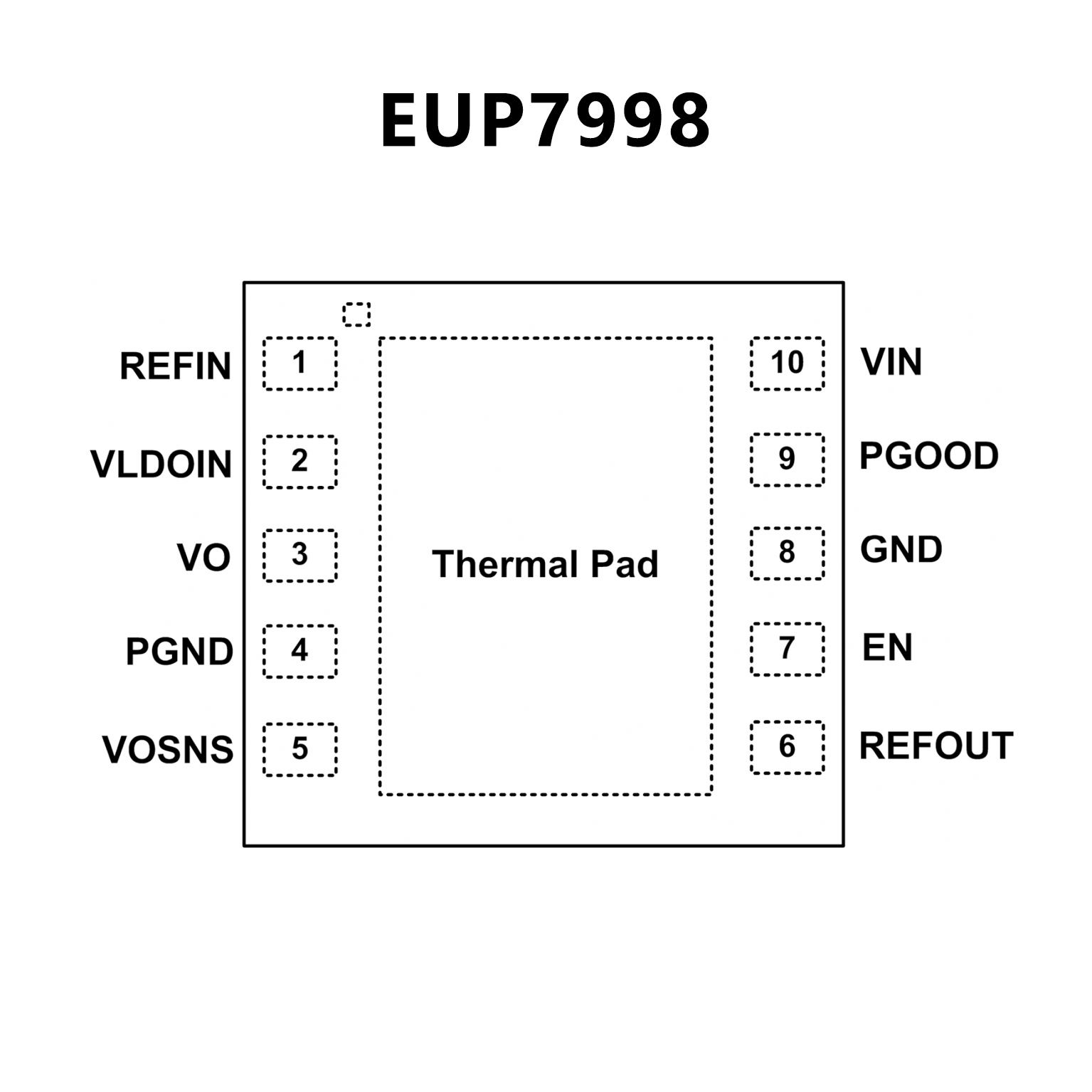

? Available in 10-Pin 3mm×3mm TDFN and
SOP-8 (EP) packages
? RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free
? VLDOIN Voltage Range: 1.1V to 3.5V
? Low Input Voltages: 2.5V Rail and 3.3V Rail
? Minimum VO Effective Capacitance: 20μF
? Open-Drain Power-Good (PG) Output
? EN Logic Control
? Buffered Reference: ±10mA
? Soft-Start Inrush Control
? Remote Sensing
? Fast Load Transient Response
? Under-Voltage Lockout
? Output Current Limit
? Thermal Shutdown Protection
? -40℃ to +125℃ Operating
Temperature Range

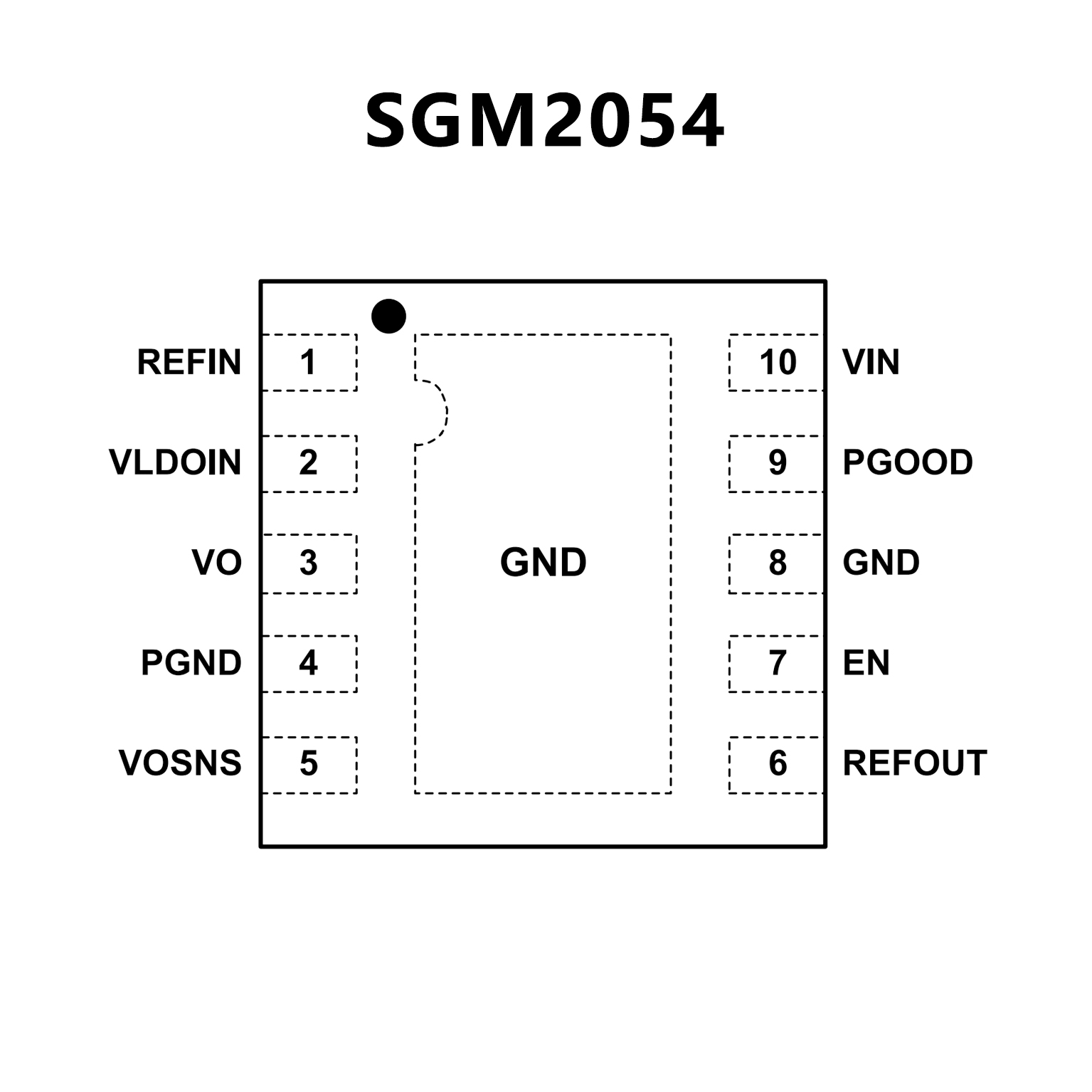

? Available in a Green
TDFN-3×3-10L Package
