Sink/Source DDR Termination Regulator, EUP7998 Replace SQ24335.
EUP7998
EUP7998.pdf
FEATURES
? VLDOIN Input Voltage Range: 1.1V to 3.5V
? VIN Input Voltage Range: 2.375V to 5.5V
? Typically 3×10μF MLCCs stable for DDR
? Fast Load-Transient Response
? ±10mA Buffered Reference (REFOUT)
? Meet DDR, DDR2 JEDEC Specifications.
Supports DDR3 and Low-Power DDR3/DDR4
VTT Applications
? Power-Good Window Comparator
? With Soft Start, UVLO and OCP
? Thermal Shutdown
? Available in 10-Pin 3mm×3mm TDFN and
SOP-8 (EP) packages
? RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free

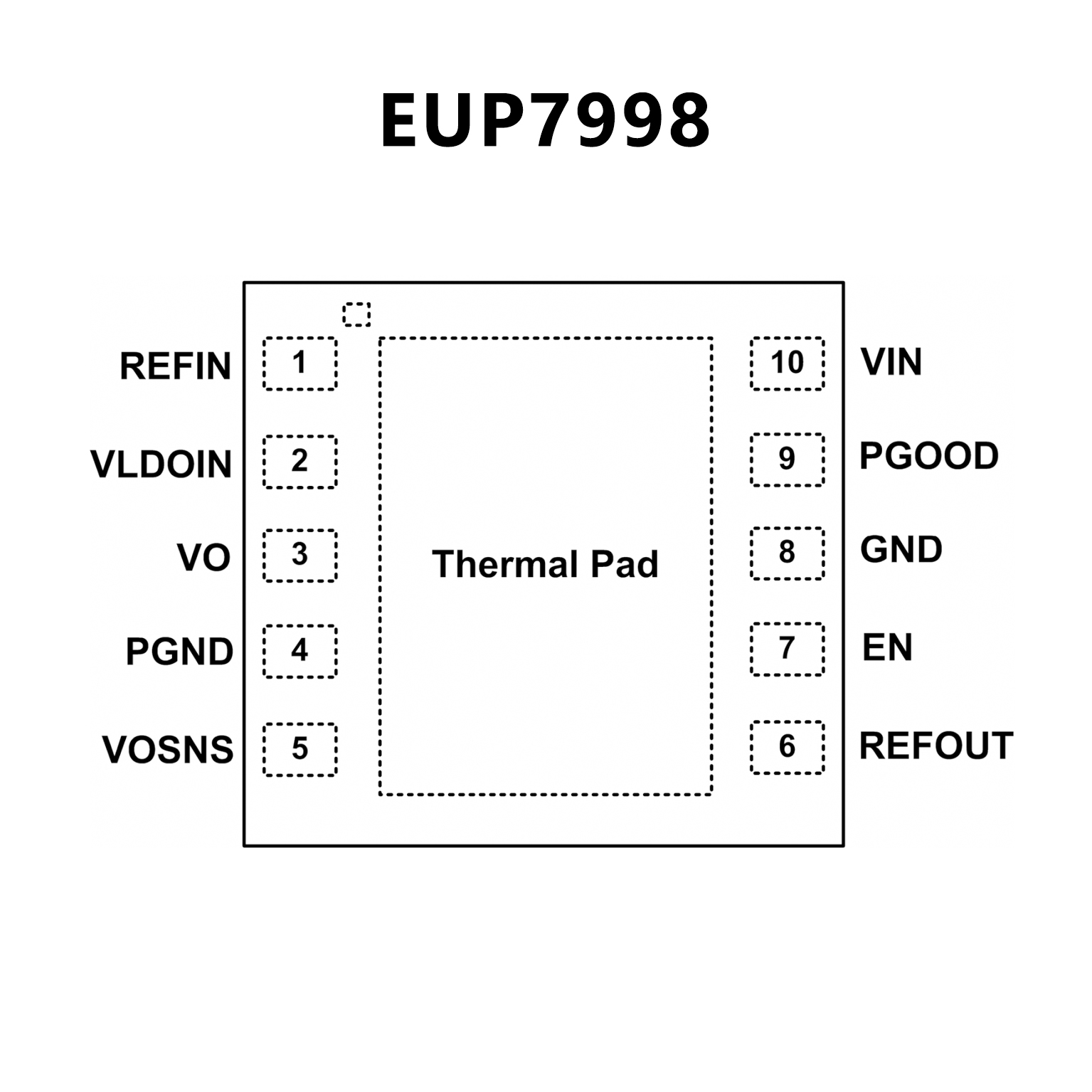

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Input Voltage: Supports 2.5V Rail and 3.3V Rail
? VLDOIN Voltage Range: 1.1V to 3.5V
? Sink and Source Termination Regulator
Includes Droop Compensation.
? Requires Minimum Output Capacitance of 20μF
(Typically 3×10μF MLCCs) for Memory.
? PGOOD to Monitor Output Regulation
? Enable Function Option
? REFIN Input Allows for Flexible Input Tracking
either Directly or Through Resistor Divider
? Remote Sensing(VOSNS)
? ±10mA Buffered Reference(REFOUT)
? Built-in Soft-start, UVLO, and OCL
? Thermal Shutdown Protection
? Supports DDR, DDR2, DDR3, DDR3L, Low
Power DDR3, DDR4 VTT Applications
? Compacted Package: DFN3×3-10 with Thermal
Pad

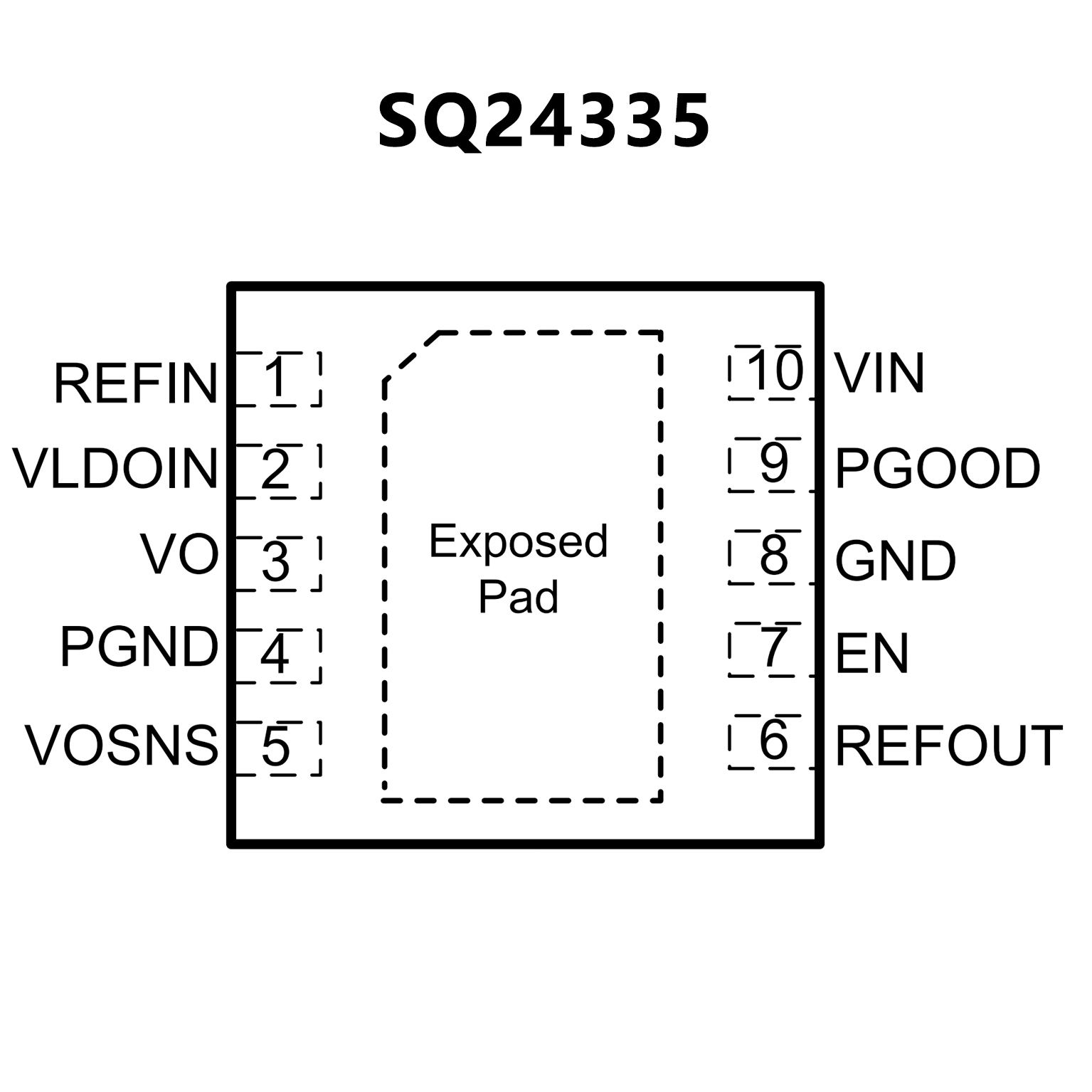

PIN CONFIGUTION
