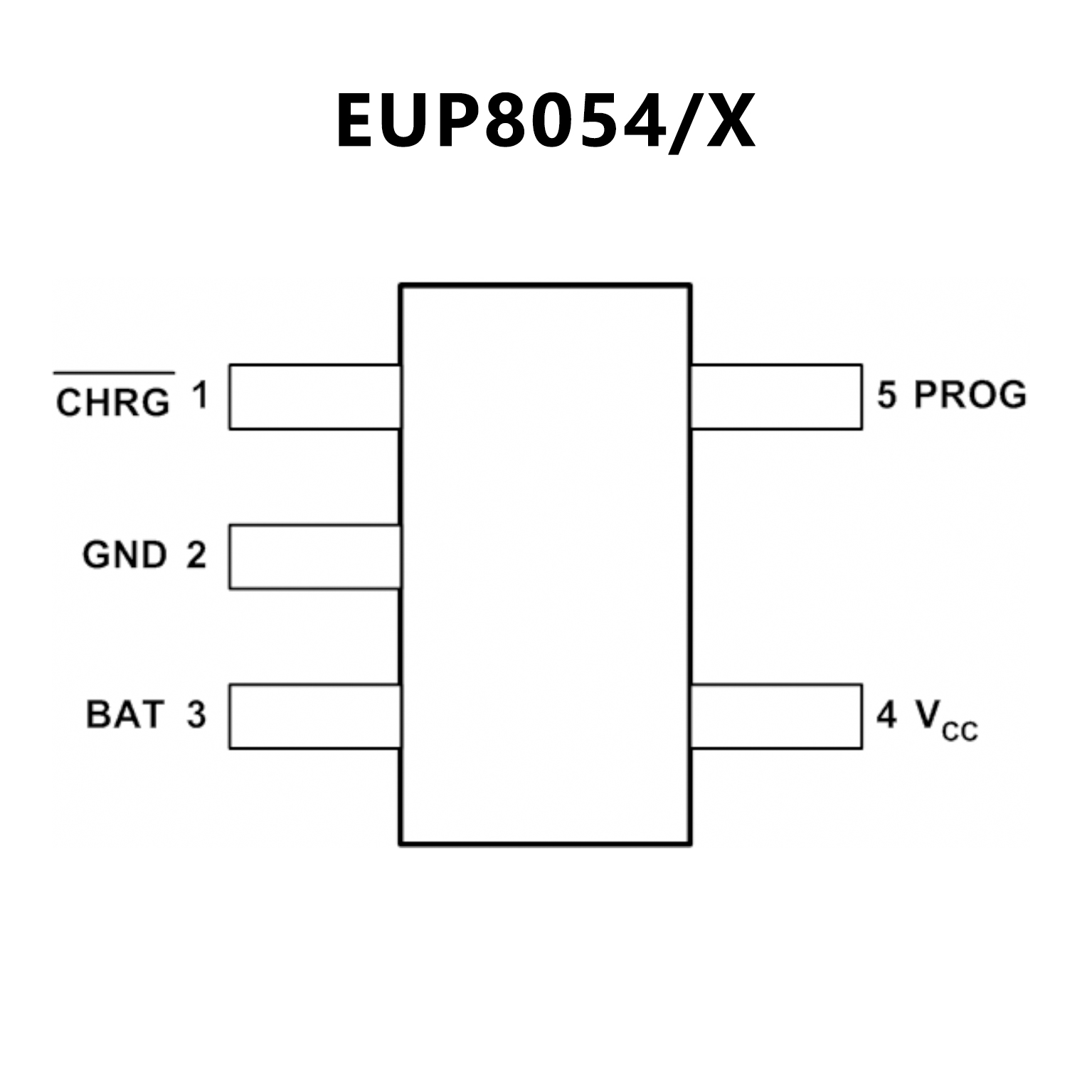

EUP8054/X.pdf? Programmable Charge Current Up to 800mA
? No MOSFET, Sense Resistor or Blocking Diode Required
? Complete Linear Charger in ThinSOT Package for Single
Cell Lithium-ion Batteries
? Constant-Current/Constant-Voltage Operation with Thermal
Regulation to Maximize Charge Rate Without Risk of
Overheating
? Charges Single Cell Li-Ion Batteries Directly from USB Port
? Preset 4.2V Charge Voltage with ± 1% Accuracy
? Charge Current Monitor Output for Gas Gauging
? Automatic Recharge
? Charge Status Output Pin
? C/10 Charge Termination
? 25μA Supply Current in Shutdown
? 2.9V Trickle Charge Threshold (EUP8054)
? Available Without Trickle Charge (EUP8054X)
? Soft-Start Limits Inrush Current
? Available in TSOT25 Package
? RoHS Compliant and 100% Lead (Pb)-Free
? Programmable charge current up to 800mA
? TSOT23-5L package
