Automotive 4-Bit Fixed Direction Voltage-Level Translator with Schmitt-Trigger Inputs and 3-State Outputs, P2P TXU0304QWBQARQ1.
SGM4575-13QTWB14G/TR
SGM4575-13QTWB14G/TR.pdf
SGM4575-13QTWB14G/TR.pdfFEATURES
? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1 TA = -40℃ to +125℃
? VCCA Supply Voltage Range: 1.1V to 5.5V
? VCCB Supply Voltage Range: 1.1V to 5.5V
? Inputs Accept Voltages Higher than the Supply
Voltage and up to 5.5V
? Up to 200Mbps (TYP) Supporting for 3.3V to 5.0V
? Low Power Consumption
? 1.61μA (TYP) at +25℃
? Slow and Noisy Inputs are Allowed by Schmitt
Trigger Inputs
? Integrated Static Pull-Down Resistors for Inputs
Help the Channels Avoid Floating
? Outputs are Disabled when VCC ≤ 100mV or
Floating
? IOFF Allows Operation in Partial-Power-Down
Mode
? OE with VCC_MIN Circuitry Allows for Control from
Either A or B Port
? -40℃ to +125℃ Operating Temperature Range
? Available in Green TQFN-2.5×3-14L and
TSSOP-14 Packages

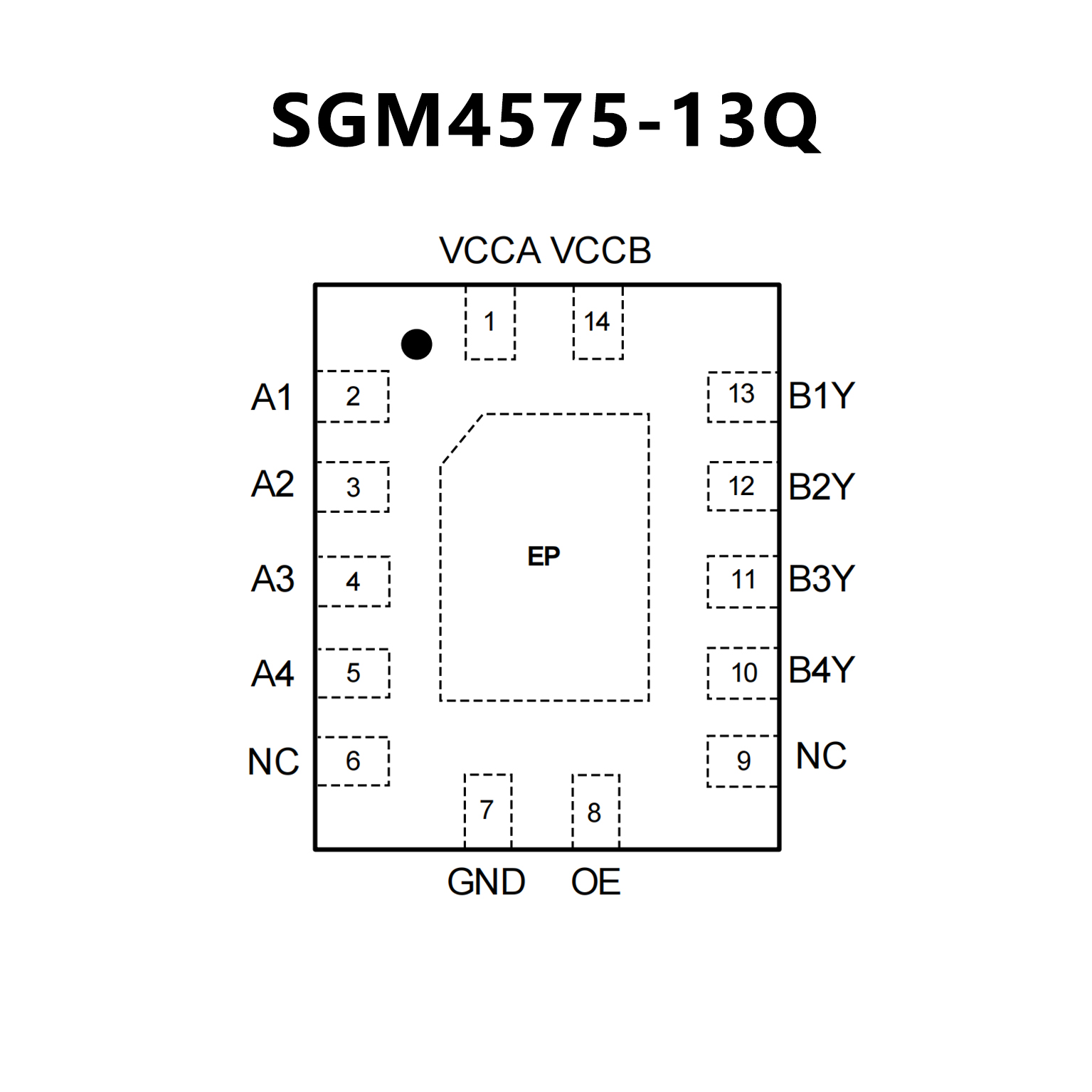

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? AEC-Q100 qualified for automotive applications
? Available in wettable flank QFN (WBQA) package
? Fully configurable dual-rail design allows each port
to operate from 1.1V to 5.5V
? Up to 200Mbps support for 3.3V to 5.0V
? Schmitt-trigger inputs allows for slow and noisy
inputs
? Inputs with integrated static pull-down resistors
prevent channels from floating
? High drive strength (up to 12mA at 5V)
? Low power consumption
– 3μA maximum (25°C)
– 6μA maximum (–40°C to 125°C)
? VCC isolation and VCC disconnect (Ioff-float) feature
– If either VCC input is <100mV or disconnected, all
outputs are disabled and become high impedance
? Ioff supports partial-power-down mode operation
? Control logic (OE) with VCC(MIN) circuitry allows for
control from either A or B port
? Pinout compatible with TXB family level shifters
? Available in other variants that support common
applications: TXU0104-Q1, TXU0204-Q1
? Operating temperature from –40°C to +125°C
? Latch-up performance exceeds 100mA per JESD
78, class II
? ESD protection exceeds JESD 22
– 2500V human-body model
– 1500V charged-device model

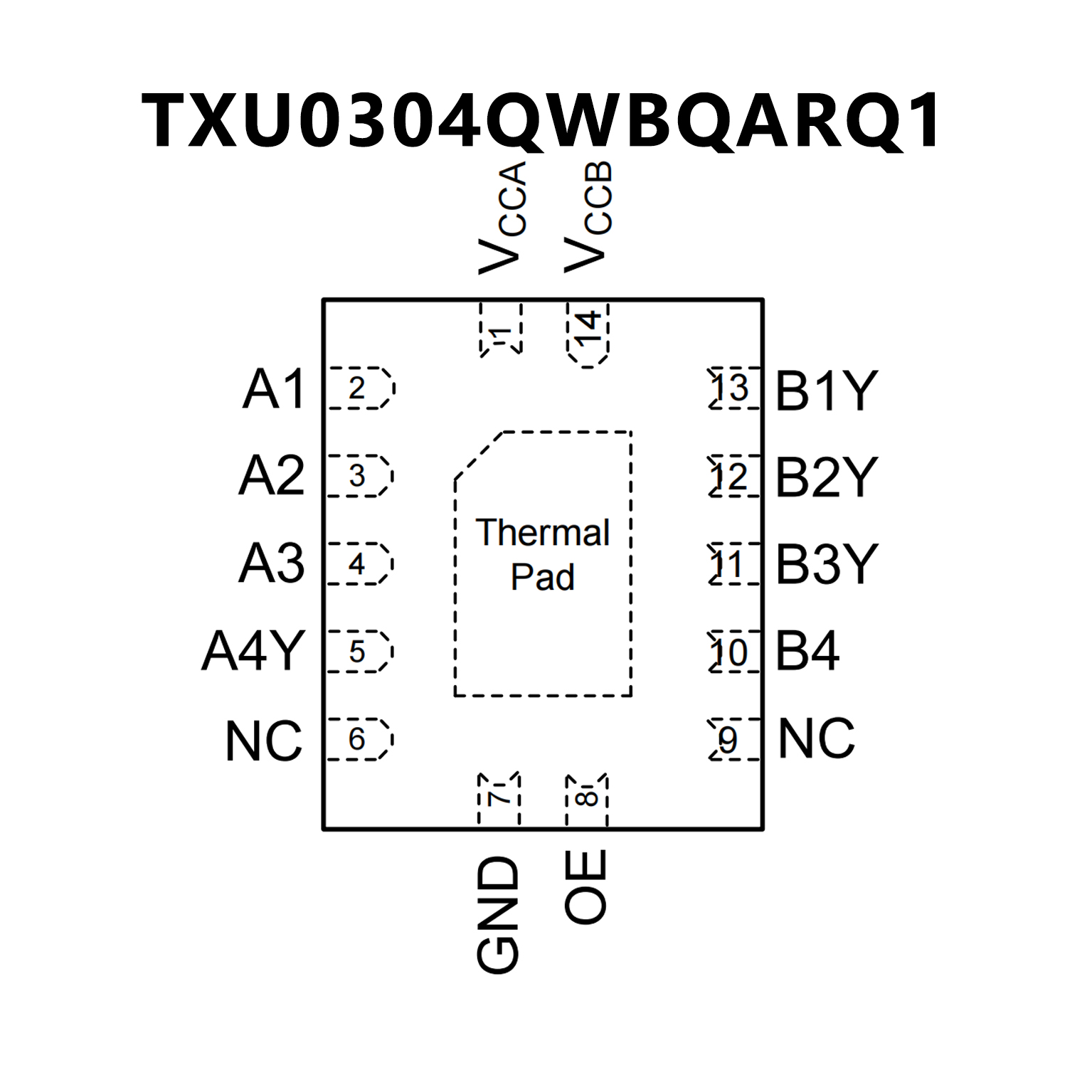

PIN CONFIGUTION
